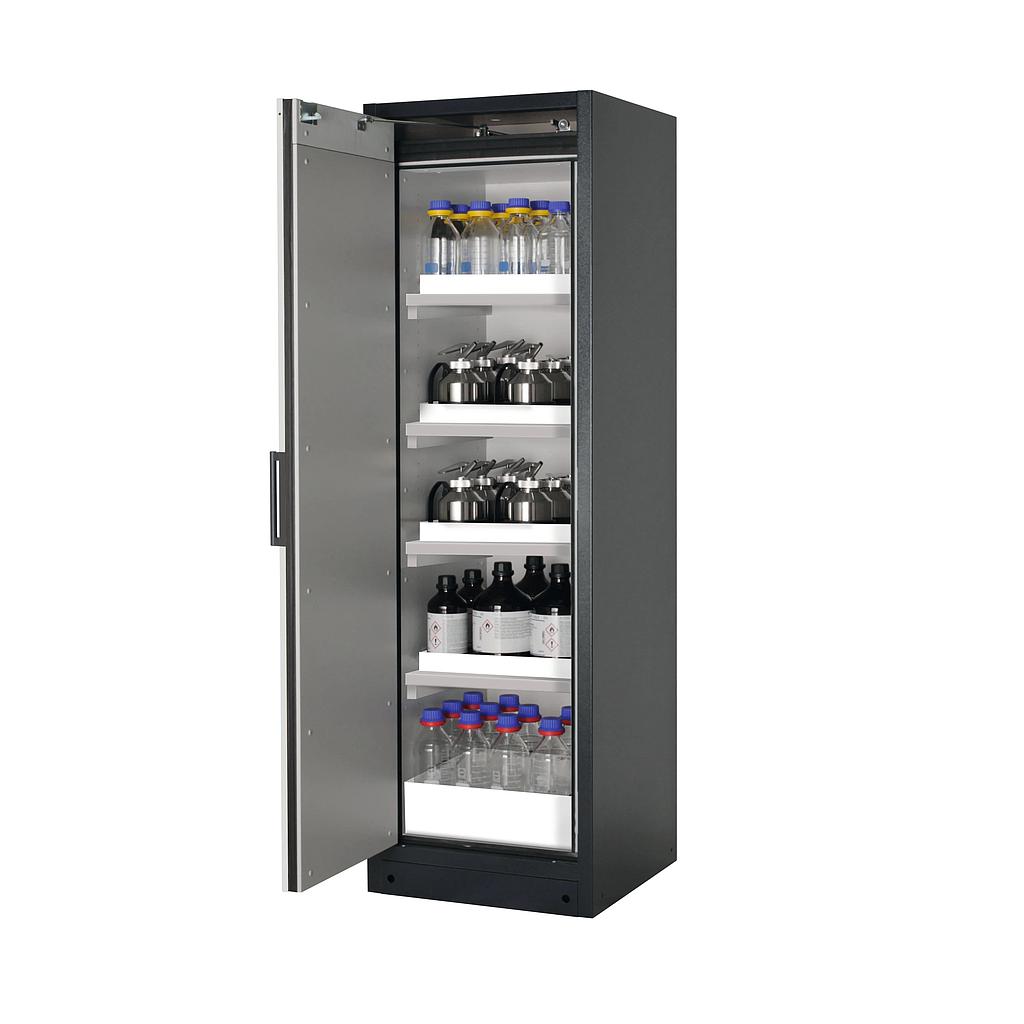

Exterior: 1 door
+External Specification (WxDxH, mm): 599 x 615 x 1953
+Internal Specification (WxDxH, mm): 450 x 522 x 1657
+Depth of an open door(mm) : 1129
+ Weight(kg): 265
Shelf:
+Quantity(EA) : 3
+Maximum Load(kg): 75/per
Spill Tray:
+Quantity(EA) : 1
+Load Capacity(ℓ) : 22
Pass Fire Test (90 minutes)
By obtaining a fire-resistance rating of 90 minutes, the fire truck's dispatch time and fire suppression time can be guaranteed for 90 minutes in the event of a fire.
Duct Exhaust Connection
The exhaust vent located at the top of the product effectively discharges odors and harmful gases and automatically closes the exhaust vent in the event of a fire to block the outflow of harmful gases to the outside.
Automaticlly Closed Door
A low melting point lead sigeon unit automatically closes the door to prevent secondary damage if a fire occurs and the temperature rises above a certain temperature.
Height Adjustable Shelf
A height adjustment hole of 32mm is machined to adjust the height of the shelf, which allows fine height adjustment of the shelf and supports a load of up to 75kg.
Expandable Interior Material
The expandable interior finish between the door and the frame swells in response to heat in the event of a fire, sealing the gap between the door and the frame and blocking the entry of heat into the cabinet. It keeps the temperature inside constant.
Large storage capacity
The large-capacity storage cabinet offers three basic shelves and can store about 95 liters of water for three double-door type shelves and 190 liters for six drawers. (3 base shelves and 1 base spill tray provided)
Fire resistant filler double replenishment structure
A double supplement with a fireproof filler between the outer wall and the inner wall blocks the inflow of heat and keeps the temperature of the interior space constant
Dimensional drawing
