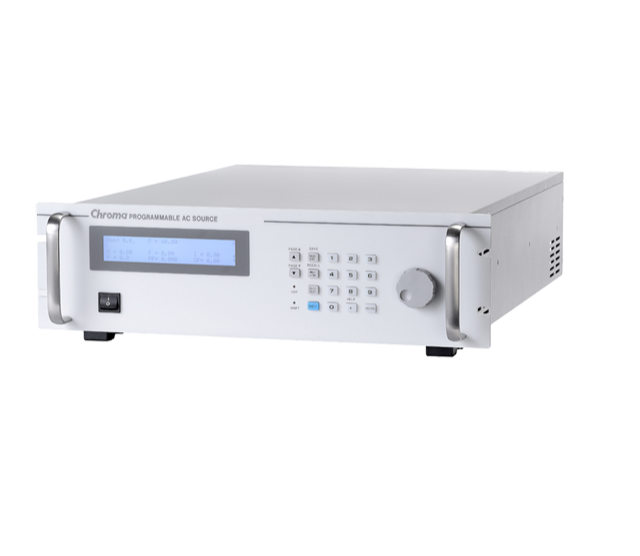

CHROMA 61501 Programmable AC Power Source (500VA)

Number of output phases: 1

AC Output

Power: 500VA

Voltage

Output voltage range: 150V / 300V / Auto

Accuracy: 0.2% + 0.2% F.S.

Resolution: 0.1V

Distortion:

0.3% @ 50/60Hz

1% @ 15–1kHz (Typical)

Line regulation: 0.1%

Load regulation: 0.2%

Maximum Current (per phase)

RMS: 4A / 2A (150V / 300V)

Peak: 24A / 12A (150V / 300V)

Frequency

Frequency range: DC, 15 ~ 1kHz

Accuracy: 0.15%

DC Output

Power: 250W

Voltage: 212V / 424V

Current: 2A / 1A (212V / 424V)

Programmable output impedance range: 0Ω + 200µH ~ 1Ω + 1mH

Harmonic and interharmonic simulation bandwidth: 2400Hz

Input Specifications

Voltage range: 1Ø 100~240V ±10% VLN

Frequency range: 47 to 63Hz

Current (per phase): 10A Max. @ 90V

Power factor: 0.97 Min

Measurement

Voltage

Voltage range: 150V / 300V

Voltage accuracy: 0.2% + 0.2% F.S.

Resolution: 0.1V

Current

Range (Peak): 24A

Current accuracy (RMS): 0.4% + 0.3% F.S.

Current accuracy (Peak): 0.4% + 0.6% F.S.

Power

Accuracy: 0.4% + 0.4% F.S.

Resolution: 0.1W

Harmonic analysis range: 2~40 orders

Other Specifications

Communication interfaces: USB, LAN, GPIB, RS-232 (optional)

Temperature Range

Operating: 0˚C to 40˚C

Storage: -40˚C to 85˚C

Safety & EMC standards: CE (including EMC & LVD)

Dimensions (H x W x D): 133.35 x 82.6 x 569.5mm

Weight: 20 kg
