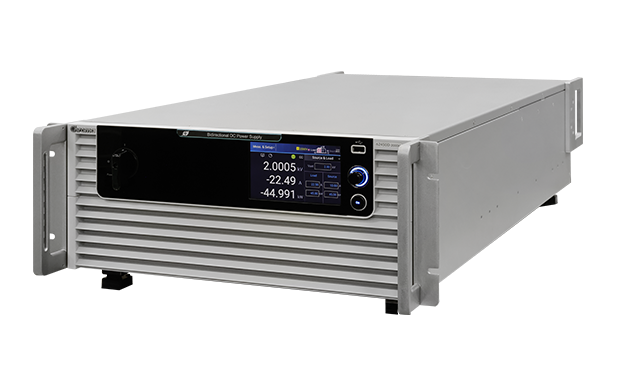

CHROMA 62060D-100 Programmable Bidirectional DC Power Supply (0–100V; ±180A; ±6000W)

Source/Load (Bi-directional)

Voltage source/sink: 0–100 V

Current source/sink: ±180 A

Power source/sink: ±6000 W

Minimum load voltage (at max current): 5 V

Source regulation

Voltage: ±0.01% F.S.

Current: ±0.05% F.S.

Load regulation

Voltage: ±0.02% F.S.

Current: ±0.1% F.S.

Measurement

Voltage measurement

Range: 20V / 100V

Accuracy: ±(0.05% + 0.05% F.S.)

Current measurement

Range: 36A / 180A

Accuracy: ±(0.1% + 0.1% F.S.)

Response Time

Rise Time (Full Load): 10 ms

Rise Time (No Load): 10 ms

Fall Time (Full Load): 10 ms

Fall Time (No Load): 10 ms

Drift

30 minutes

Voltage: 0.04% Vmax

Current: 0.06% Imax

8 hours

Voltage: 0.02% Vmax

Current: 0.04% Imax

Temperature Coefficient

Voltage: 0.04% Vmax / °C

Current: 0.06% Imax / °C

Input Specifications

AC input: 3-phase, 3-wire + earth (no neutral)

3-phase 200–220 Vac ±10% (no neutral)

3-phase 380–480 Vac ±10% (no neutral)

(67% output power at 200–220 Vac, 100% output power at 380–480 Vac)

AC frequency range: 47–63 Hz

Power factor: > 0.97

General

Remote Sense voltage drop compensation: up to 2% full-scale per wire (4% total)

Operating temperature: 0°C – 40°C

Storage temperature: -25°C – 70°C

Dimensions (H × W × D): 133 × 428 × 730 mm / 5.23 × 16.85 × 28.74 in

Weight: 29.6 kg / 65.25 lbs
