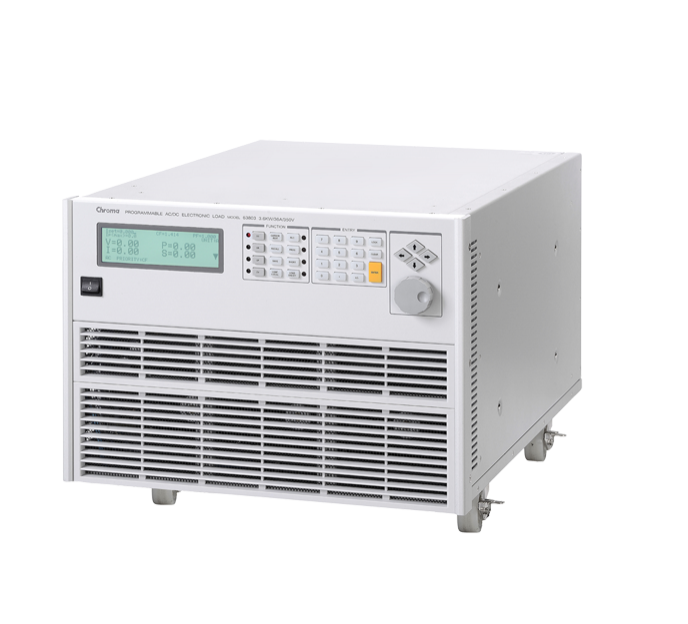

CHROMA 63803 Programmable AC & DC Electronic Load (3600W)

- General Specifications

+ Power: 3600W

+ Current: 0 ~ 36Arms (108A peak, continuous)

+ Voltage: 50 ~ 350Vrms (500V peak)

+ Frequency: 45 ~ 440Hz, DC

AC Section

Constant Current (CC) Mode

+ Current range: 0 ~ 36 Arms, programmable

+ Accuracy: 0.1% + 0.2% F.S.

+ Resolution: 5mA

Constant Resistance (CR) Mode

+ Resistance range: 1.39Ω ~ 2.5kΩ, programmable

+ Accuracy: 0.5% + 0.5% F.S.

+ Resolution: 50µS

Constant Power (CP) Mode

+ Power range: 3600W (programmable)

+ Accuracy: 0.2% + 0.3% F.S.

+ Resolution: 1.125W

DC Section

- Voltage range: 7.5V ~ 500V

- Current range: 0 ~ 36A

- Minimum voltage: 7.5V

- Response time: 75µs

- Operation modes: CC, CV, CR, CP, DC Rectified

- Short-circuit simulation: CR mode at maximum power

Measurement Section

Voltage Measurement

+ Range: 350Vrms (500Vpeak)

+ Accuracy: 0.1% + 0.1% F.S.

+ Resolution: 10mV

Current Measurement

+ Range: 36 Arms (160Apeak)

+ Accuracy (<70Hz): 0.1% + 0.2% full scale

+ Accuracy (>70Hz): 0.1% (1 + CF² × kHz) + 0.2% full scale

+ Resolution: 1.0mA

+ Other parameters: P(W), S(VA), Q(VAR), CF, PF, Freq, R, Ip-, Ip+, THDv

Others

- Voltage monitoring output: ±500V / ±10V (isolated)

- Current monitoring output: ±2000A / ±10V (isolated)

Protection

- OCP (Over Current Protection): 38.4Arms

- OV alarm: 360Vrms (DC: 510VDC)

- OPP (Over Power Protection): 3840W

- OTP (Over Temperature Protection)

Control Interface: GPIB, RS-232

Power Supply

- 1 phase 100~115Vac ±10%, 47~63Hz

- 1 phase 200~230Vac ±10%, 47~63Hz

Dimensions (H x W x D): 310 x 440 x 595 mm / 12.2 x 17.32 x 23.42 inch

Weight: 66 kg / 145.5 lbs

Standard Accessories: Main unit
