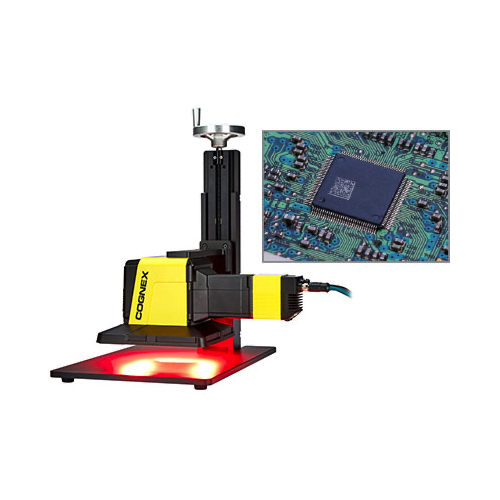

Cognex DataMan 475VS-HD Barcode Verification (11 x 9 mm; 1 mil)

Light Types: 660 nm, 45°, 4-quadrant 660 nm, 30°, 1-quadrant, 2-quadrant, 4-quadrant 660 nm, 90°

Barcodes:

1D: UPC/EAN, Code 128, Code 39

2D: Data Matrix (ECC 200), QR Code, Micro QR Code

Field of View: 11 x 9 mm

Working Distance: 41 mm with side illumination attachment 71 mm without side illumination attachment

Depth of Field (WD Tolerance): 1 mil codes: ±0.2 mm 4 mil codes: ±0.8 mm

Minimum X-Dimension: 1 mil (0.025 mm)

Image Sensor:

Sony IMX264LLR

5 MP (2448 x 2048 pixels)

2/3 inch CMOS, global shutter

8.5 mm x 7.1 mm (H x V); 3.45 μm square pixels

Lens Type: 75 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor format, C-mount lens (user cannot change lens)

Communication: Ethernet

Power: 24 VDC±10%, 1.5 A max (36 W peak)

Weight: 2245 g

Dimensions: 360 x 145 x 193 mm

Protection Standard: IP65

Certifications: CE, TUV, FCC, KC

Industry Standard Compliance: ISO/IEC 15415, ISO/IEC 15416, ISO/IEC TR 29158, ISO/IEC 15426-1, ISO/IEC 15426-2

Application Standards: GS1, MIL-STD 130 UID, UDI, HIBCC, ISO 15434, Russian Crypto-Code, Custom Application Standards

Scan Speed: Application dependent

Maximum Linear Speed: Application dependent

Coplanarity Tolerance: ±0.1° coplanarity
