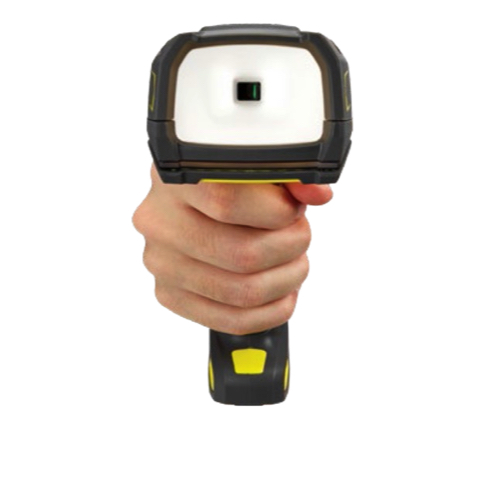

Cognex Dataman 8700DQ Barcode Scanner (1DMax, 2DMax, Hotbars, PowerGrid; 1.6MP)

Lens: 6.2 mm fixed lens

Lighting:  White diffuse

Aimer: On-axis green LED aimer

Minimum 1D/2D code size: 3 mil/5 mil

Dimensions:

Wireless: 211.4 mm (H) x 113.1 mm (L)

Corded: 223.4 mm (H) x 113.1 mm (L)

Weight:

Wireless: 479 g (battery included)

Corded:  395 g (+ approx. 130 g for cables)

Algorithms: 1DMax, 2DMax, Hotbars, PowerGrid

Resolution: 1.6MP

Status Outputs: OLED display, LED ring light, beeper, vibration

Communications

Serial: RS-232 and USB

Ethernet: TCP/IP, FTP, industrial protocols: EtherNet/IP, PROFINET, MC protocol, Modbus TCP

Intelligent base station: RS-232, USB, Ethernet, industrial protocols

Bluetooth connectivity: smartphone, intelligent base station, Bluetooth enabled tablet or PC

Wireless infrastructure mode connectivity: PC through Wi-Fi router

Symbologies:

1D: UPC/EAN/JAN, Codabar, Interleaved 2 of 5, Code 39, Code 128, Code 93, POSTNET, PLANET Code, IMB, Postal

2D: Data Matrix, QR, MicroQR, PDF417, MaxiCode, Aztec

Operating Temperature: 0°C–40°C (32°F–104°F)

Storage Temperature: -40°C–60°C (-40°F–140°F)

Maximum Humidity: 95% (non-condensing)

Power Supply Requirements

DataMan 8700 with serial/USB: 5.5 V DC, 6.0 W maximum LPS or NEC Class 2 power supply

DataMan 8700 with Ethernet: PoE Class 2 power supply

DataMan 8700 with Bluetooth: 3.7 V, 5000 mAh Li-ion battery

DataMan Intelligent Base Station: 5.5 V DC, 6 W maximum LPS or NEC Class 2 power supply or PoE Class 2 power supply

Wireless Unit Scans per Full Charge: 125,000+

Protection Handheld reader: IP67; Base station: IP65

Drop Test: Multiple drops from 2.5 meters

Tumble Test: 5,000 tumbles from 1 meter

Operating System: Windows 7 and Windows 10
