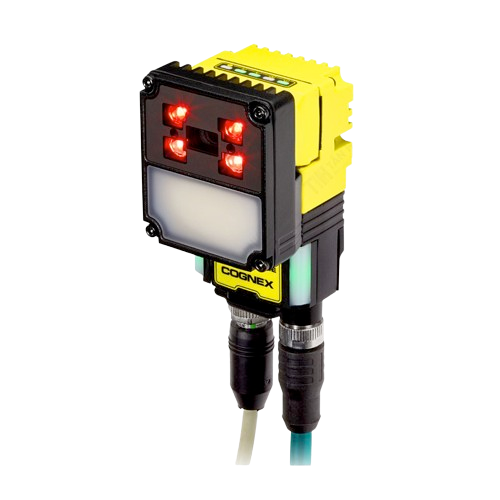

Image Sensor: 1/3-inch CMOS, global shutter
Image Sensor Properties:
Diagonal size: 6.21 mm
Pixel size: 3.45 μm (H)
Image Resolution: 1440 x 1080 pixels
Lens Options: 6.2 mm or 16 mm High Speed Liquid Lens
Electronic Shutter Speed:
Minimum exposure: 43 μs
Maximum exposure: 200 ms (with external illumination)
Acquisition: Up to 45 Hz
Lighting
Multi-Purpose Integrated Light: 4 LED lights (red), and 1 Diffused light (white) for 6.2 mm and 16 mm lens
Front cover options: (2) polarized, (2) direct and diffuse.
Mini Light: 4 LED high-powered lights (red) for 6.2 mm and 16 mm lens
Front cover options: polarized, half-polarized and clear.
Status Outputs 5 status LEDs, audible beeper, 2 visual indicator lights
Discrete Inputs: 2 opto-isolated, 2 configurable
Discrete Outputs: 2 opto-isolated, 2 configurable
Power: 24 V DC +/- 10%1
Power Consumption: ≤ 7.5 W
Weight
Multi-Purpose Integrated Light 6.2 mm Model: 214 g
Multi-Purpose Integrated Light 16 mm Model: 234 g
Mini Light 6.2 mm Model: 194 g
Mini Light 16 mm Model: 169 g
Sensor Temperature: 0-70 °C (32-158 °F)2
Storage Temperature: -10-60 °C (14-140 °F)
Operating and Storage Humidity: <95% non-condensing
