Volumetric Flow Rate: 1.0 ... 5.5 m³/h (Nm³/h)
Accuracy: ≤ 2 % deviation
Sampling duration: 1 min … 1000 h
Power source: 230 V, 50 / 60 Hz
Power requirement: approx. 470 VA (350 VA without cooling)
Filter:
Filter diameter: 47 mm
Sampling diameter: 41 mm

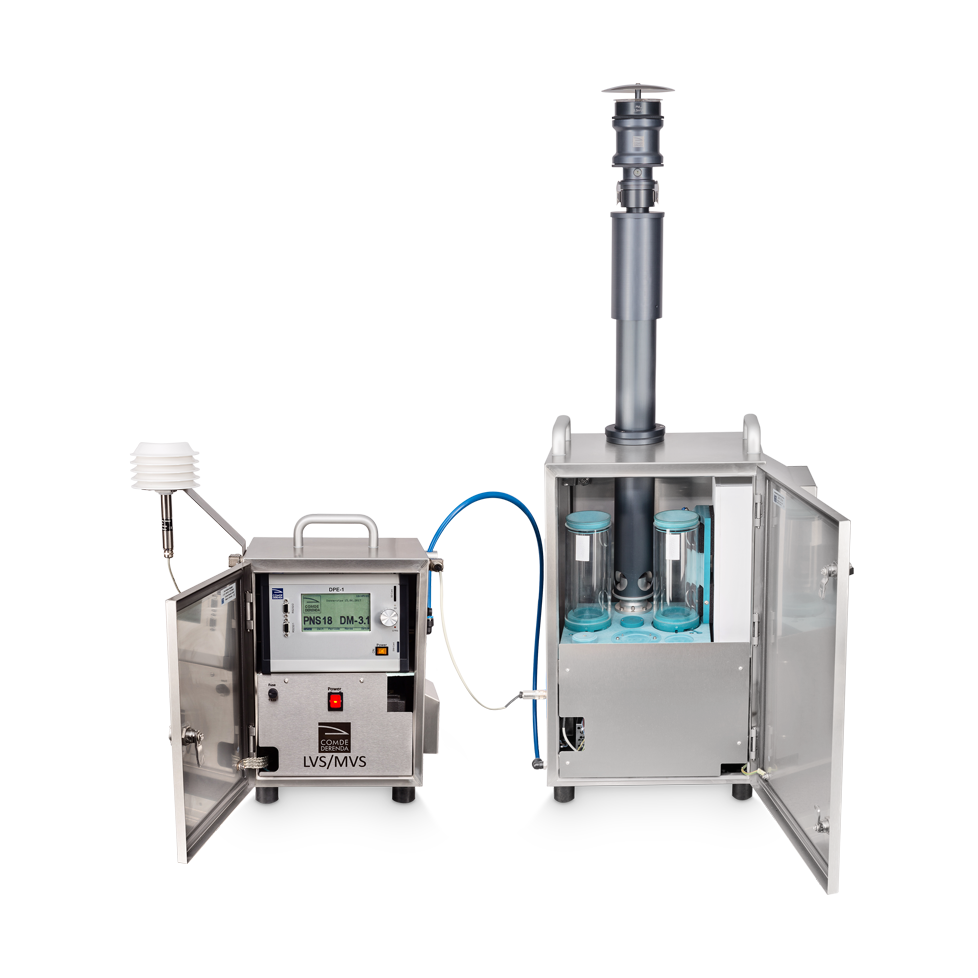

Dimensions (LVS/MVS)
Width: 300 mm
Height: 450 mm
Depth: 250 mm
Dimensions (Changer)
Width: 535 mm (435 mm without cooling)
Height: 735 mm (without sensor and intake tube)
Depth: 350 mm
Weight: approx. 50 kg (44 kg without cooling)
Filter Changer: approx. 25kg / approx. 31kg (with cooling)
Interfaces: RS-232: 2
SD drive: 1
GPRS modem (optional): 1
Sound pressure level acc. to EN 3744:2010 (distance 8 m): < 36 dB(A)
Protection: IP 55
Operating temperature range: -30 … +50 °C
Operating temperature range with cooling (set point value max. 23 °C): -30 … +35 °C
Operating humidity range: 0 … 100 %rH
