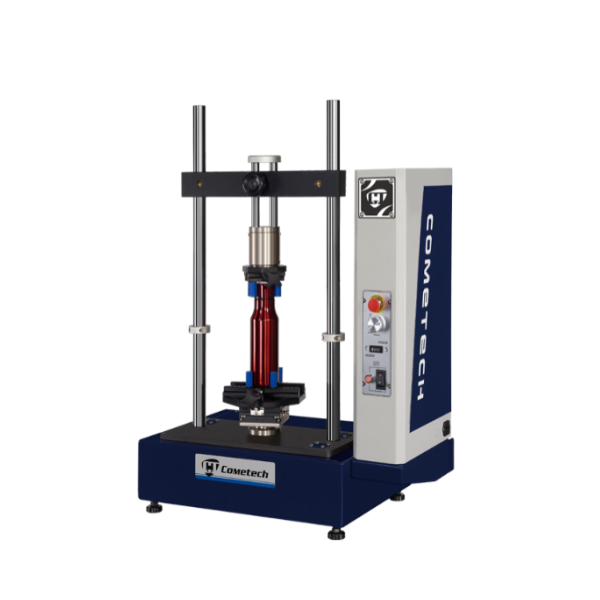

Cometech QC-41111 Torque Tester - Programmable Type (3/6/10/15/50/100 N-m)

Capacity: 3/ 6/ 10/ 15/ 50/ 100 N-m

Torsion Resolution: 1/50,000

Torsion Unit: MN-m, kN-m, N-m, N-cm, mN-m, kgf-m, kgf-cm, kgf-mm, gf-cm, gf-mm, lbf-ft, lbf-in, ozf-in

Speed Unit: RPH, RPM, RPS

Angular Displacement Unit: deg, rad, rev

Power Type: Servo Motor

Test Speed: 0.05– 30.00 RPM (180.00 – 36000.00 deg/min) Digital Input

Test Direction: Clockwise/ Counter-clockwise

Angular Resolution: 0.01°

Max. Sampling Rate: 1200Hz

Test Space: Width: Max. 340mm Height: Max. 400mm ( without grip)

Power Supply: Single phase AC 220– 240V, 5A

Dimension: 70 x 40 x 106 cm

Weight: 75 Kg

Datasheet
