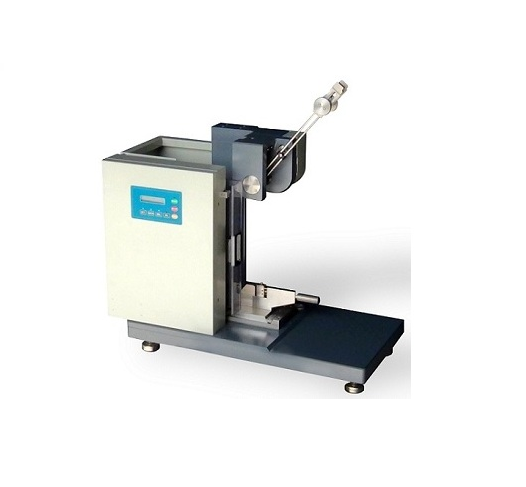

IZOD type (ISO-13802)
1.Capacity：1J，2.75J、5.5J、11J、22J (or appoint)
2.Impact velocity：3.5 m/sec±10％
3.Radius of striker edge：0.8±0.2mm
4.Location of striking edge above tope face of support：22±0.2mm
IZOD type (ISO-13802)
5.Optional force grip: to change the clmap force
6.Specimen width：10mm or 12.7mm
7.Specimen thickness：3 ~ 12.7mm
Charpy type(ISO-13802)
1.Capacity：0.5J、1J、5J( or appoint)
2.Impact velocity：2.9m/sec±10％
3.Radius of striker edge：2±0.5mm
4.Radius of curvature of supports：1±0.1mm
5.Position of midplane between supports:± 0.5mm
Charpy type(ISO-13802)
6.Specimen length：50 ~ 160 mm(span adjustable)
Others:
1.Energy loss：< 2.5%
2.Minimum display angle：0.05 angle
3.Digital controller: calculate impact energy, impact angle automatically
4.Calculate the impact stress by specimen size
Others:
6.With fix position device
7.With protection cover and protection lock
8.Manual or automatic (switchable)
9.Impact angle: 150°
other:
10.Noncontact sensor: reduce the effect of friction.
11.Size：88 × 36 × 93 cm
12.Weight：180kg
13.Power：single phase, 100-240V
14.Optional accessories: software for saving and analysing data.
