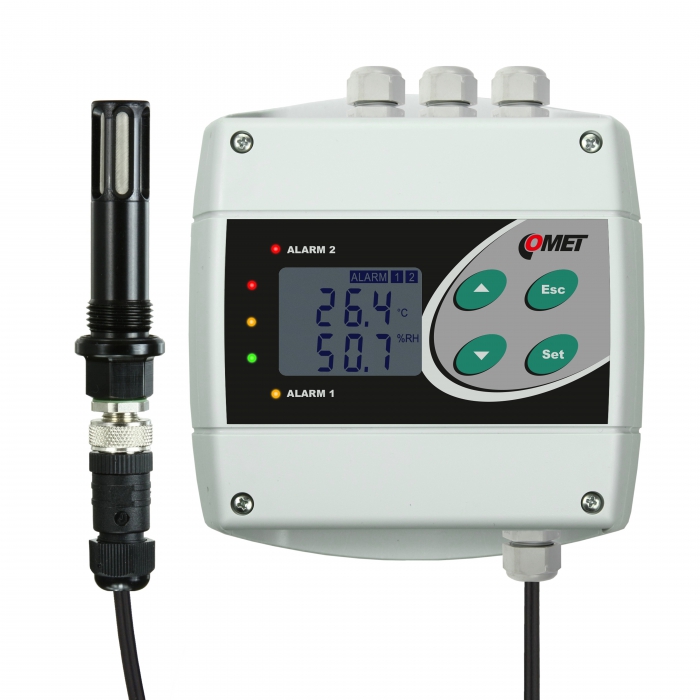

Comet H3021P Compressed air temperature and humidity regulator (9-30Vdc)

Measured value: Temperature, Relative humidity

Temperature sensor:

Measuring range: -30 to +105 °C

Accuracy: ±0.4 °C

Resolution: 0.1 °C

Humidity sensor:

Measuring range: 0 to 100 % RH

Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C

Resolution: 0.1% RH

Dew point:

Measuring range: -60 to +80 °C

Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %

Resolution: 0.1 °C

Measuring the moisture of compressed air:

Measuring range: up to 25 bars

Air flow velocity: up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)

Relays output:

Quantity: 2

Maximal voltage: 50 V

Maximal current: 2 A

Maximal power: 60 VA

Operating temperature: -30 to +80 °C

Channels: 1x connectable temperature+humidity probe

Counted values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Acoustic alarm: from built-in beeper - switchable

Power: 9-30 Vdc

Protection class: IP65 electronics; IP40 sensors

Dimensions: 136 x 159 x 45 mm; length/diameter of external probe 88/18 mm

External probe cable length: 1 meter

Weight: approx. 400 g

Included in delivery:

H3021P

Instruction Manual

Traceable Calibration Certificate

FREE software TSensor for Configuring of the Transmitter
