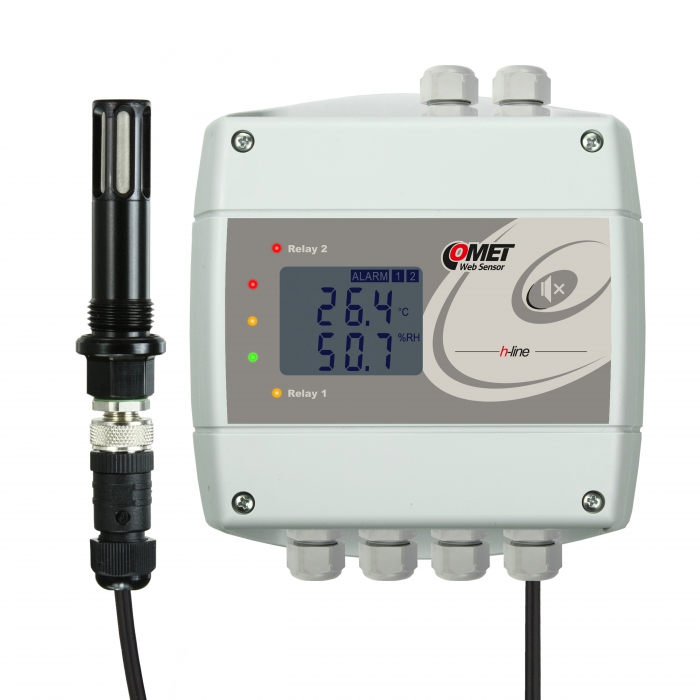

Comet H3531P Compressed-air thermometer hygrometer (9-30Vdc, Ethernet)

Measured value: Temperature, Relative humidity, Counted values (dew point…), Two-state signal

Temperature sensor:

Measuring range: -30 to +105 °C

Accuracy: ±0.4 °C

Resolution 0.1 °C

Humidity sensor:

Measuring range: 0 to 100 % RH

Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C

Resolution: 0.1% RH

Dew point:

Measuring range: -60 to +80 °C

Accuracy: ±1.5°C for dew point temperature +10°C and higher at ambient temperature +25°C

±2.0°C for dew point temperature 0°C at ambient temperature +25°C

±3.0°C for dew point temperature -10°C at ambient temperature +25°C

±6.0°C for dew point temperature -20°C at ambient temperature +25°C

Resolution: 0.1 °C

Measuring the moisture of compressed air:

Measuring range: up to 25 bars

Air flow velocity: up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)

Relay outputs:

Quantity: 2

Maximal voltage: 50 V

Maximal current: 2 A

Maximal power: 60 VA

Binary inputs:

Quantity: 3

Signal for binary inputy: dry contact, open collector or two-state voltage signal. Inputs are not galvanically isolated.

Minimum pulse duration on binary input: 500 ms

Voltage across open contact: < 3.3 V

Low voltage level: 0 to +0.5 V

High voltage level: +3.0 to +30 V

Operating temperature: -30 to +80 °C

Channels: 1x connectable temperature+humidity probe

Counted values: humidex, dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Acoustic alarm: from built-in beeper - switchable

Output: Ethernet

Power: 9-30 Vdc

Protection class: IP40

Dimensions: 136 x 159 x 45 mm; length/diameter of external probe 150/18 mm

External probe cable length: 1 meter

Weight: approx. 410 g

Included in delivery:

H3531P

Instruction Manual

Traceable Calibration Certificate

FREE software TSensor for Configuring of the Transmitter

COMET Cloud for 3 Months
