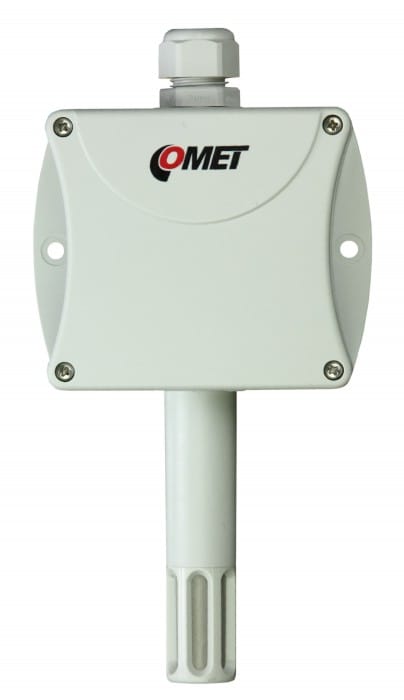

Comet P3110E Economy humidity and temperature transmitter (9-30 Vdc, 4-20 mA)

Measured value: Temperature, Relative humidity

Temperature sensor:

Measuring range: -30 to +80 °C

Accuracy: ±0.6 °C

Resolution 0.1 °C

Humidity sensor:

Measuring range: 0 to 100 % RH

Accuracy: ±3.0 % RH in the range 5 to 95 %RV při 23 °C

Resolution: 0.1% RH

Operating temperature: -30 to +80 °C

Channels: internal temperature and humidity sensor

Output: 4-20 mA, galvanic isolated

Range of humidity sensor temperature compensation: all temperature range

Power: 9-30 Vdc

Protection class: IP65 electronics; IP40 sensors

Dimensions: 88.5 x 170 x 39.5 mm; stem length: 75 mm

Weight: approx. 150 g

Included in delivery:

P3110E

Instruction Manual

Traceable Calibration Certificate

Datasheet

Manual
