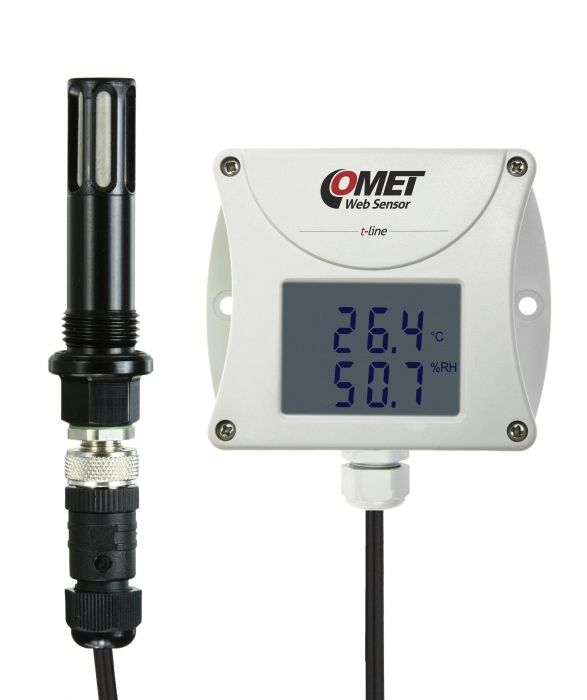

Comet T3511P Web sensor - compressed air remote thermometer hygrometer (9-30Vdc)

Measured value: Temperature, Relative humidity, Counted values (dew point…)

Temperature sensor:

Measuring range: -30 to +105 °C

Accuracy: ±0.4 °C

Resolution: 0.1 °C

Humidity sensor:

Measuring range: 0 to 100 % RH

Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C

Resolution: 0.1% RH

Dew point:

Measuring range: -60 to +80 °C

Accuracy: ±1.5°C for dew point temperature +10°C and higher at ambient temperature +25°C

±2.0°C for dew point temperature 0°C at ambient temperature +25°C

±3.0°C for dew point temperature -10°C at ambient temperature +25°C

±6.0°C for dew point temperature -20°C at ambient temperature +25°C

Resolution: 0.1 °C

Measuring the moisture of compressed air:

Measuring range: up to 25 bars

Air flow velocity: up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)

Operating temperature: -30 to +80 °C

Channels: 1x connectable temperature+humidity probe

Counted values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Output: Ethernet

Range of humidity sensor temperature compensation: all temperature range

Measuring interval: 2 s

Available temperature units: degrees Celsius, degrees Fahrenheit

Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols: E-mail, SNMP Trap, Syslog

Power: 9-30 Vdc

Protection class: IP30 electronics; IP40 sensors

Dimensions: 88.5 x 93 x 39.5 mm; length/diameter of external probe: 150/18 mm

External probe cable length: 1 meter

Weight: approx. 260 g

Included in delivery:

T3511P

Instruction Manual

Traceable Calibration Certificate

FREE software TSensor for Configuring of the Transmitter

COMET Cloud for 3 Months
