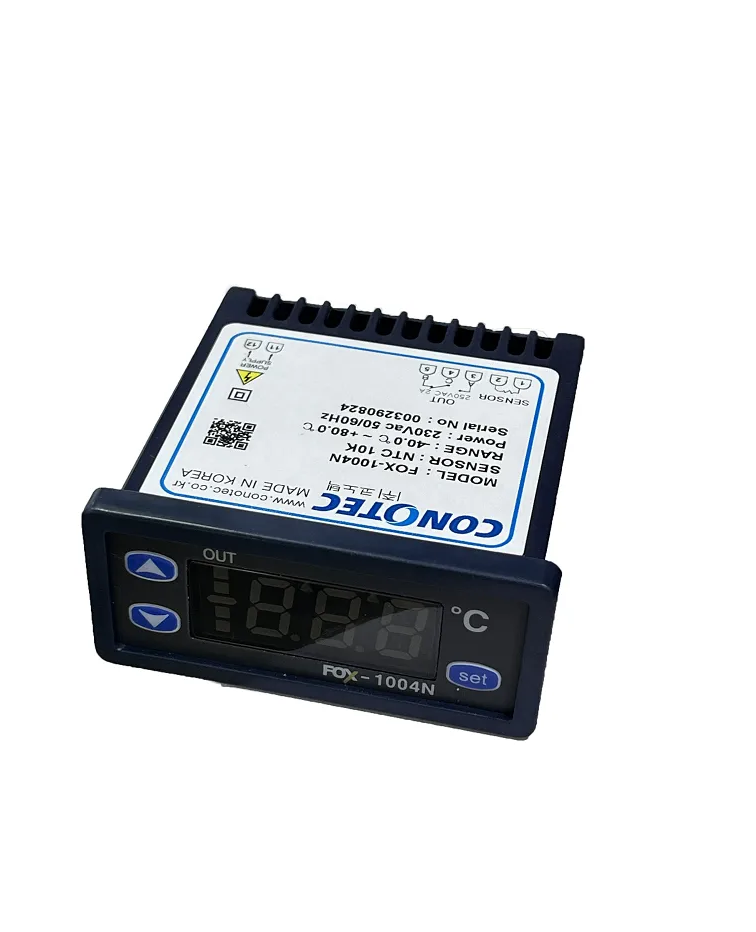

Overall Dimensions: The controller has dimensions of 79mm x 35mm, with a panel cut-out size of 71mm x 29mm.
Installation Depth: 50mm, including the length of the connecting wires.
Rear Section: The rear body length of the device is 77mm, with an additional 6.5mm for the connecting wire.
Structure: The device is suitable for panel mounting through precisely dimensioned holes.
Setup Mode: To enter the programming setup mode, press and hold the "SET" button for 5 seconds.
Users can select the following settings:
Sensor type (CoL or HEt)
Temperature deviation (dIF): Adjustable from 0.1 to 19.9°C.
Output delay time (dLt): Adjustable from 0.00 to 9.59 seconds.
Temperature calibration (Cor): Adjustable range from -5.0°C to +5.0°C.
Function lock (Loc): Lock changes with ON or OFF option.
Display: The screen shows the current temperature.
Temperature Setting: Press the "SET" button. When the temperature value blinks, use the up/down arrow keys to adjust to the desired value, then press "SET" to save.
Confirmation: After completing the setup, the symbol "o-t" will appear to confirm that the settings have been successfully applied.
