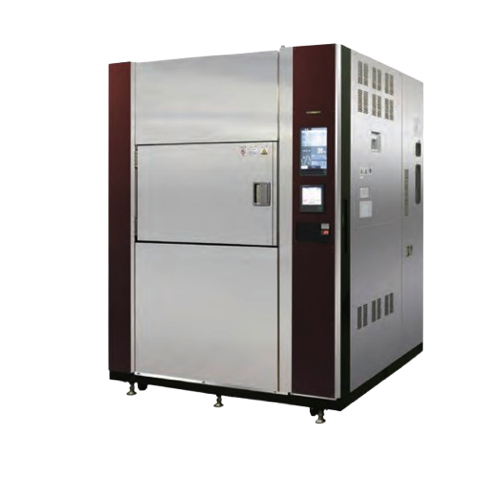

Type: Stationary sample type, cool/hot air switchable, two/three zone switchable
Temperature setting range:
Testing temperature: Low-temperature testing: −70 to 0℃, High-temperature testing: 60 to 200℃
Precooling temperature: −80℃ to testing chamber temperature low-temperature setting
Preheating temperature: Testing chamber temperature high-temperature setting to 210℃
Temperature fluctuation margin: ±0.5℃
Temperature rise time (high-temp chamber): Room temperature to 150℃: Within 20 min.
Temperature drop time (low-temp chamber): Room temperature to −75℃: Within 45 min.
Temperature cycle performance:
Temperature return time: Within 3 min.
Return time guaranteed cycles: 5 cycles (low-temperature start)
Sample Type: Plastic molded IC
Sample Weight: 10 kg (IC 5.5 kg + single-stage jig 4.5 kg)
Testing chamber temperature/time (Low): －55℃/30 min.
Testing chamber temperature/time (High): 125℃/30 min.
Temperature measurement position: Upwind side
Continuous operation cycles: 100 cycles (low-temperature start)
Testing chamber volume: 200 L
Permissible sample weight inside testing chamber: Max. 50 kg (Bottom 40 kg or less, sample shelf 12 kg or less [per shelf])
Testing chamber dimensions (W×D×H): 630 × 690 × 460 mm
Product dimensions (W×D×H): 1,535 × 1,450 × 1,980 mm
System component materials: Exterior: Stainless steel (SUS430), Interior: Stainless steel (SUS304)
Cooling method: Dual refrigeration using mechanical compressor (water-cooling)
Cooling system refrigerant/output:
High-temperature side: R404A/4.5 kW (inverter control)
Low-temperature side: R23/3.7 kW (inverter control)
Operational noise: 65 dB(A)
Power supply: Three-phase 200V 50/60Hz, Three-phase 220V 60Hz, Three-phase 380V 50Hz
Maximum load current / Power supply capacity: 120 A / 42 kVA
Dry air: Pressure: 0.4 to 0.7 MPa, Consumption: Approx. 10.2 L(ANR) per cycle
Coolant:
Water volume: 4200 L/h (coolant inlet temperature 32℃)
Water pressure: 0.1 to 0.5 MPa
System side piping diameter: Rc 1 1/4
Drain piping: Rc 1/2
Product weight: 1200 kg
