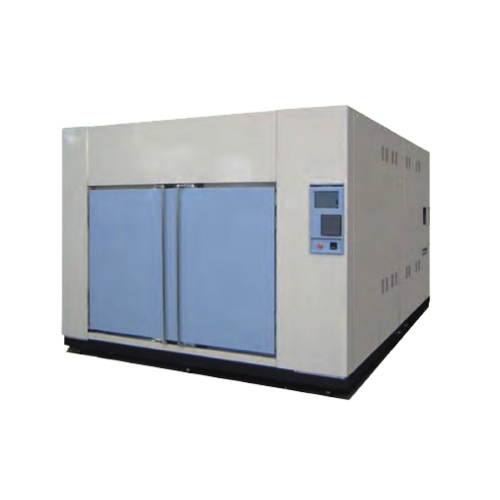

Type: Stationary sample type, cool/hot air switchable, two/three zone switchable
Testing temperature range:
Low-temperature testing: −65 to 0℃
High-temperature testing: 60 to 130℃
Temperature fluctuation margin: ±0.5℃
Temperature rise time (high-temp chamber): Room temperature to 150℃: Within 60 min.
Temperature drop time (low-temp chamber): Room temperature to −70℃: Within 90 min.
Temperature cycle performance:
Cycles: 5 cycles (low-temperature start)
Testing chamber temperature/time (Low): −40℃ / 30 min.
Testing chamber temperature/time (High): 120℃ / 30 min.
Temperature measurement position: Upwind side
Sample Type: Iron block
Sample weight / Temperature return time: 100 kg (equivalent to iron block) / Within 10 min.
Cooling method: Water-cooling
Exterior: Cold-rolled steel plate, natural gray (Munsell code: 1.0Y8.5/2.5)
Testing chamber volume: 2880 L
Testing chamber dimensions (W×D×H): 2000 × 1,200 × 1,200 mm
Product dimensions (W×D×H): 3100 × 3,270 × 2,180 mm
Permissible sample weight inside testing chamber: 150 kg (max.) (sample and shelf 30 kg × 5 rows or less)
Refrigerant type: High-temperature side: R404A, Low-temperature side: R23
Operational noise: 70 dB(A)
Dry air: Pressure: 0.4 to 0.7 MPa, Consumption: Approx. 20 L(ANR) per cycle
Coolant: Volume: 8,400 L/h (coolant inlet temperature 32℃), Pressure: 0.1 to 0.5 MPa
Power supply: Three-phase 200V 50/60Hz, Three-phase 220V 60Hz, Three-phase 380V 50Hz
Maximum load current / Power supply capacity: 365 A / 130 kVA
Product weight: 3,950 kg
