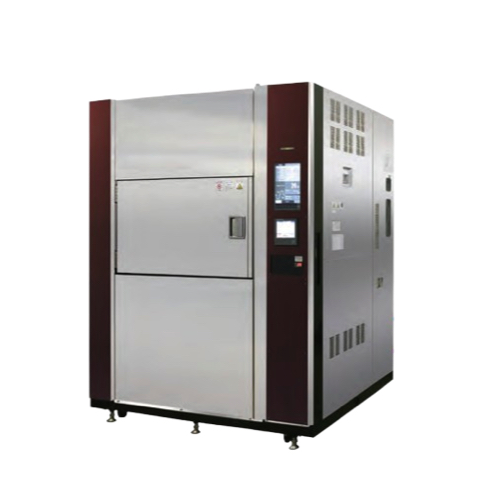

Type: Stationary sample type, cool/hot air switchable, two/three zone switchable
Testing temperature range: Low-temperature testing: －70 to 0℃, High-temperature testing: 60 to 200℃
Precooling temperature: －80℃ to testing chamber temperature low-temperature setting
Preheating temperature: Testing chamber temperature high-temperature setting to 210℃
Temperature fluctuation margin: ±0.5℃
Temperature rise time (high-temp chamber): Room temperature to 200℃: Within 20 min.
Temperature drop time (low-temp chamber): Room temperature to －75℃: Within 50 min.
Temperature return time: Within 5 min.
Return time guaranteed cycles: 5 cycles (low-temperature start)
Sample Type: Plastic molded IC
Sample Weight: 6.5 kg (IC 4.5 kg + dual-stage jig 2.0 kg)
Testing chamber temperature/time (Low): －65℃/30 min.
Testing chamber temperature/time (Room): Atmosphere temperature/5 min.
Testing chamber temperature/time (High): 150℃/30 min.
Temperature measurement position: Upwind side
Continuous operation cycles: 100 cycles (low-temperature start)
Testing chamber volume: 74 L
Permissible sample weight inside testing chamber: Max. 30 kg (Bottom 20 kg or less, sample shelf 5 kg or less [per shelf])
Testing chamber dimensions (W×D×H): 410 × 390 × 460 mm
Product dimensions (W×D×H): 1,380 × 1,400 × 1,980 mm
System component materials: Exterior: Stainless steel (SUS430), Interior: Stainless steel (SUS304)
Cooling method: Air-Cooling Remote Condenser Type
Cooling system refrigerant/output (High side): R404A/4.5 kW (inverter control)
Cooling system refrigerant/output (Low side): R23/3.7 kW (inverter control)
Operational noise: 65 dB(A)
Power supply: Three-phase 200V 50/60Hz, 220V 60Hz, 380V 50Hz
Maximum load current / Power supply capacity: 83 A / 28 kVA
Dry air: Pressure: 0.4 to 0.7 MPa, Consumption: Approx. 10.2 L(ANR) per cycle
Drain piping: Rc 1/2
Product weight: 950 kg
Compatible air-cooling condenser: RCR-R6S
Air-cooling remote condenser waste heat: Max 19kW
Remote condenser weight: 65
