CRYSOUND CRY710 Pneumatic Acoustic Test Chamber

Specifications

Color: White

Weight: About 158kg

Outer dimension: 1050(L)*700(W)*1090(H)mm

Inner dimension: 320(L)*364(W)*295(H)mm

Electrical Specifications

Operating voltage: AC 100-240V, 50/60Hz

Rated power: 15W

Pneumatic pressure: >5kg/cm2

Shielding and Soundproofing Performance

RF shielding performance: 0.8～6 GHz>70 dB

Audio isolation performance: 200Hz～500Hz>28dB, 630Hz～800Hz>35dB, Above 1000Hz>40dB(1/3 octave)

Noise floor: 45 dBA, exterior noise≤80dBA (No shock or vibration)

The CRY710 Pneumatic Shielding Box, constructed from welded steel plates, provides robust RF shielding for testing Bluetooth, Wi-Fi, and other devices, effectively preventing interference between production lines. It also offers a soundproof environment for assessing acoustic performance. The pneumatic door can be controlled via the serial port.

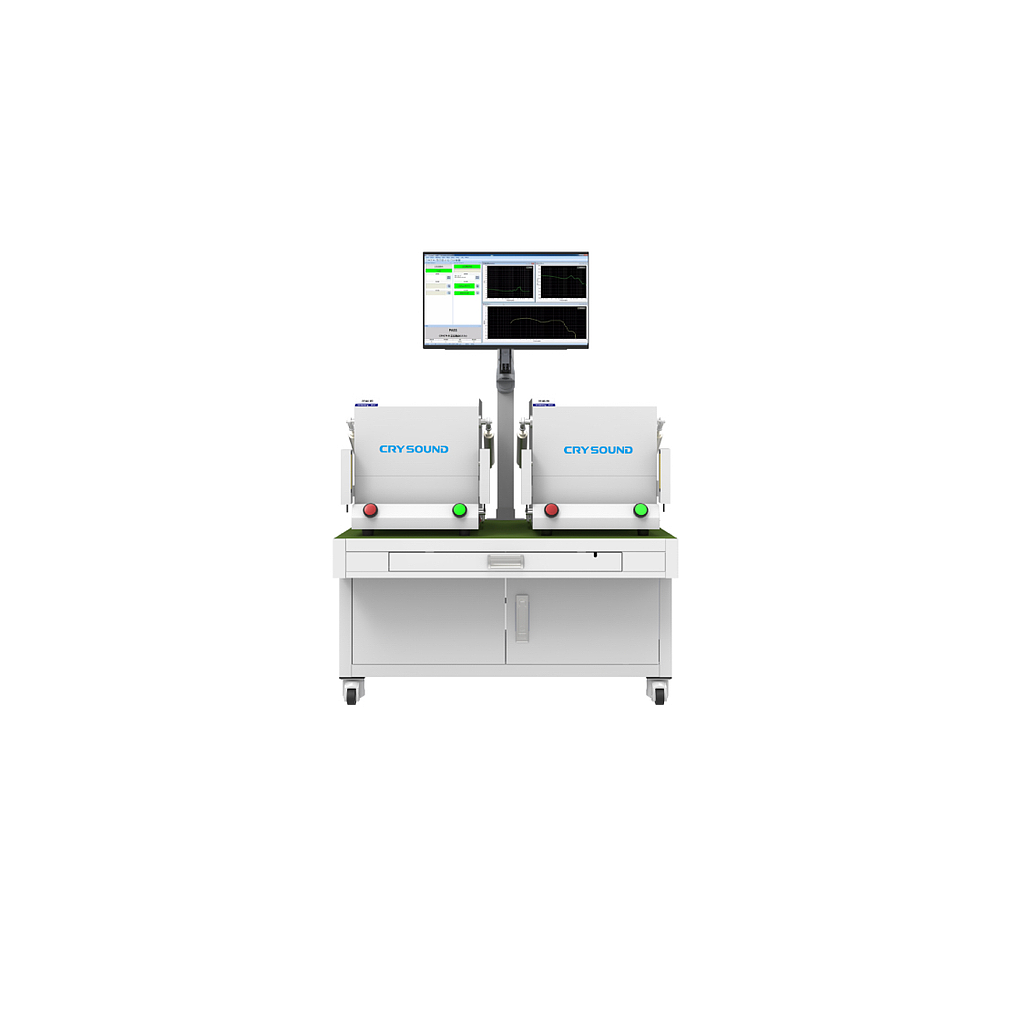

For quadruplex audio testing of TWS headphones, combining two CRY710 boxes with a CRY6151B enables a single operator to manage two test stations simultaneously, significantly reducing labor costs.
