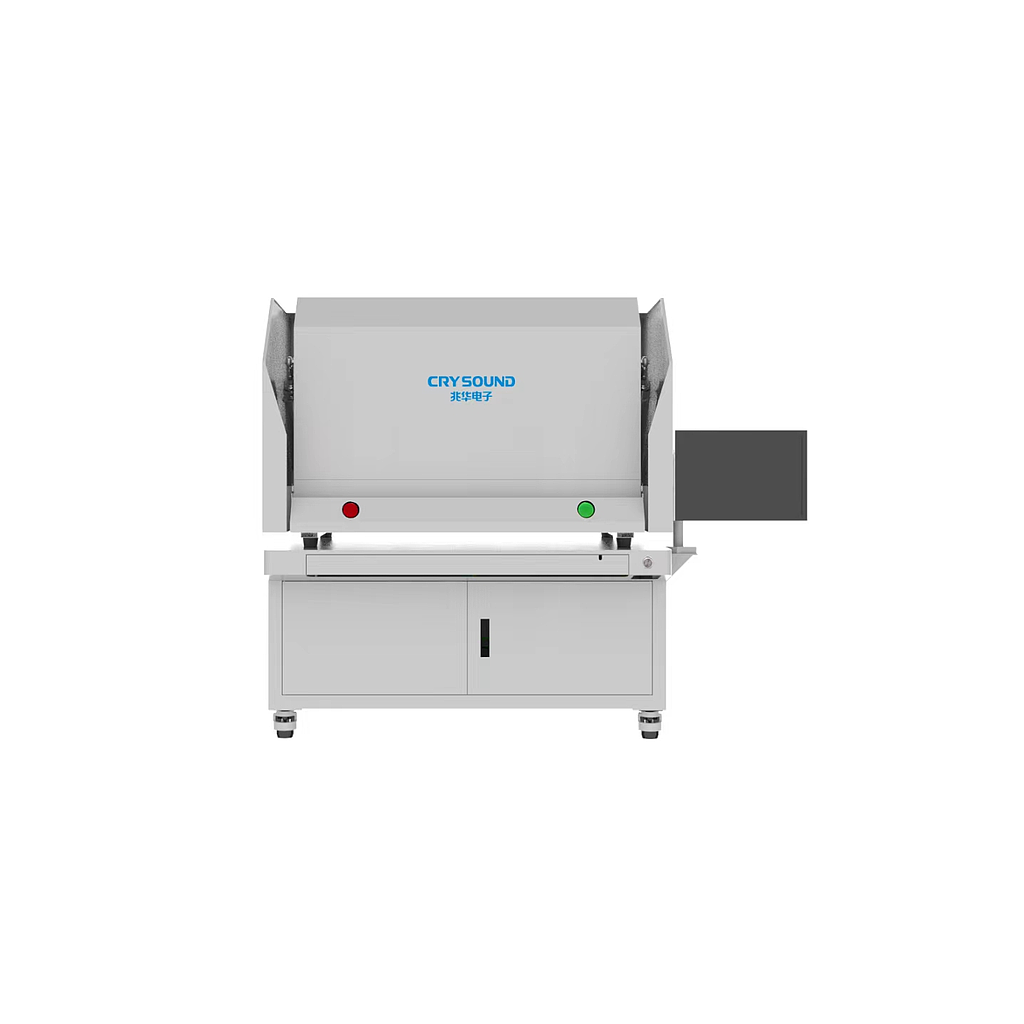

CRYSOUND CRY721C Pneumatic Acoustic Test Chamber
Specifications
Color: White
Weight: About 155kg
Outer dimension: 950(L)*700(W)*700(H)mm
Inner dimension: 800(L)*550(W)*550(H)mm
Electrical Specifications
Operating voltage: AC 100-240V, 50/60Hz
Rated power: 15W
Pneumatic pressure: >5kg/cm2
Shielding and Soundproofing Performance
RF shielding performance: 0.8～6 GHz>70 dB (Without I/O interface)
Audio isolation performance: 100Hz～125Hz>20dB, 160Hz～250Hz>30dB, 315Hz～400Hz>35dB, 500Hz～800Hz>40dB, Above 1000Hz>45dB (1/3 octave)
Noise floor: 40 dBA, exterior noise≤80dBA (No shock or vibration)
The CRY721C Pneumatic Shielded Isolator is primarily designed for power, sensitivity, and electrical performance testing of large wireless electronic products and communication devices, including headsets, wireless servers, and laptops with intercom capabilities.
This shielding box is compatible with comprehensive testers, vector network analyzers, signal sources, and channel emulators to perform essential test items. Additionally, it supports a variety of wireless production devices such as Bluetooth, WiFi, GSM, WCDMA, RFID, GPS car remote controls, and more.
