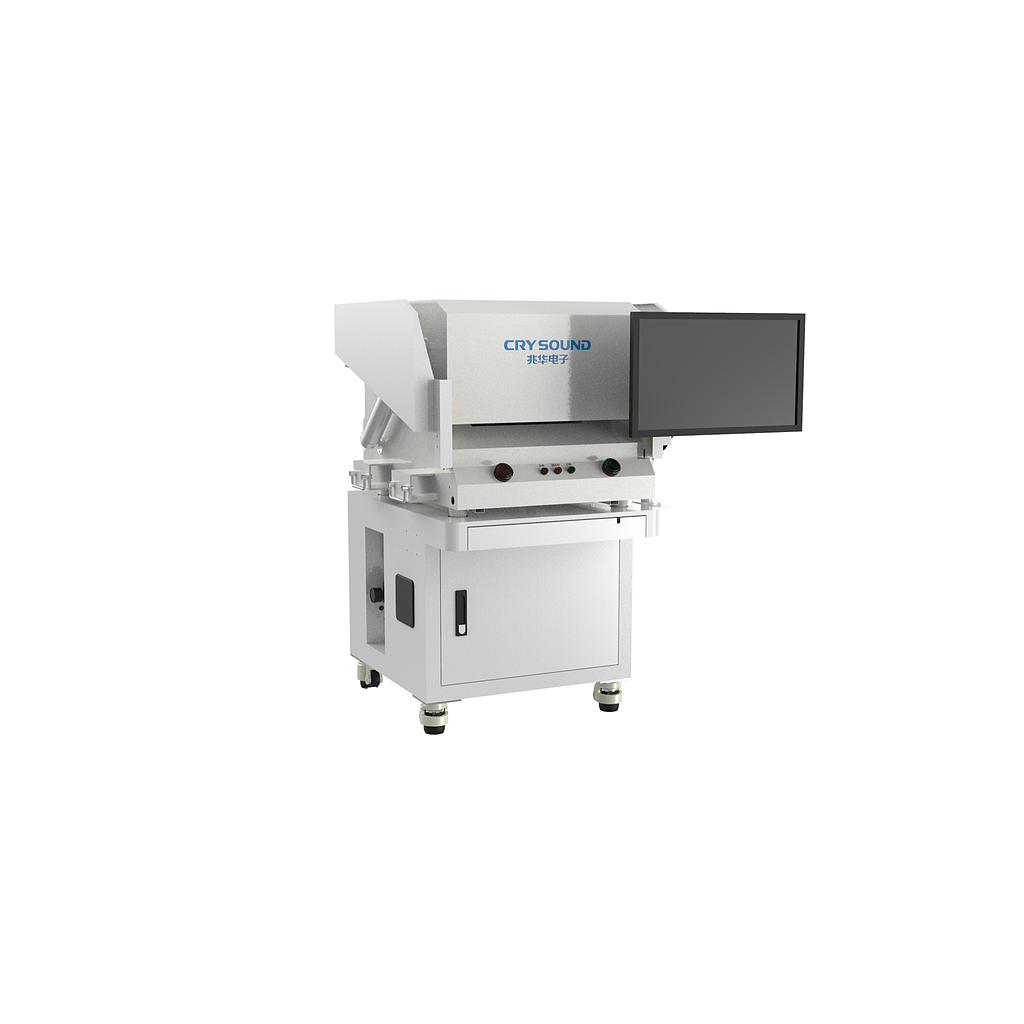

CRYSOUND CRY723D Pneumatic Acoustic Test Chamber

Specifications

Color: White

Weight: About 135kg

Box dimension: 600(L)*550(W)*500(H)mm

Operating dimension: 400(L)*350(W)*300(H)mm

Electrical Specifications

Operating voltage: AC 220V, 50/60Hz

Rated power: 15W

Pneumatic pressure: >5kg/cm2

Shielding and Soundproofing Performance

RF shielding performance: 0.8~4GHz>70dB, 4～6GHz>60dB (Without I/O interface)

Audio isolation performance: 100~300Hz>38dB, Above 300Hz>48dB (1/3 octave)

Noise floor: 30dBA, exterior noise≤80dBA (No shock or vibration)

The CRY723D Pneumatic Acoustic Test Chamber is primarily used to test the power, sensitivity, and other electrical performance parameters of wireless electronic and communication products, such as wireless servers and walkie-talkies. This test chamber can be utilized with comprehensive testers, vector network analyzers, signal sources, and channel emulators to conduct essential testing. It is capable of connecting to wireless devices via Bluetooth, WiFi, GSM, WCDMA, RFID, or GPS remote controllers.
