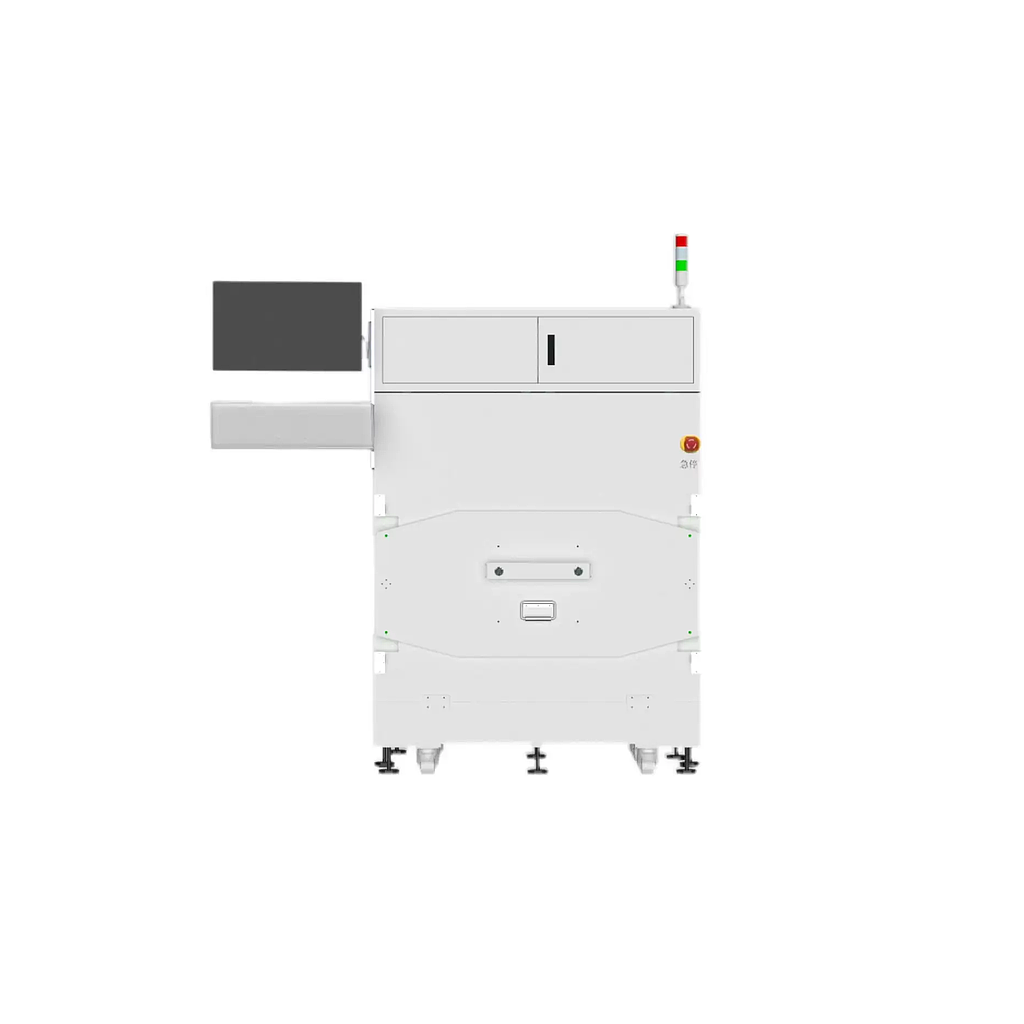

CRYSOUND CRY7865 Pneumatic Acoustic Test Chamber

Color: White

Weight: About 830Kg

Outer dimension: 1530(L)*1280(W)*1750(H)mm

Box dimension: 1040(L)*1090(W)*1150(H)mm

Inner dimension: 600(L)*680(W)*740(H)mm

Electrical Specifications

Operating voltage: AC 100-220V,50/60Hz

Rated power: 15W

Pneumatic pressure: >5kg/cm2

Shielding and Soundproofing Performance

RF shielding performance: 100MHz-6GHz 70dB(Without I/O interface)

Audio isolation performance: 50Hz-300Hz isolation>20dB, 300Hz-1000Hz isolation>40dB, Above 1000Hz isolation>60dB(1/3 octave)

The CRY7865 is a high-performance, drawer-style soundproof test chamber designed for minimal noise and radio frequency interference. It is ideal for audio and noise measurements of wireless electronic devices, both on production lines and in laboratories.

When used in conjunction with electroacoustic and radio communication testers, the CRY7865 is well-suited for evaluating Bluetooth® headphones, Bluetooth® speakers, laptops, and more. Its drawer-style design facilitates integration into automated production lines, streamlining testing processes and enhancing efficiency.
