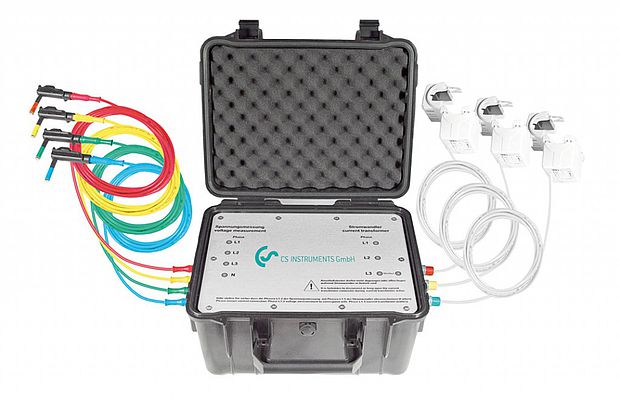

Cs-instruments CS PM 600 Mobile active/reactive power meter

Dimensions: 270 x 225 x 156 mm (B x H x T)
Weight: 2.1 kg
Impact resistant HDPE / HWU plastic (ABS)
Connectors: 4x Three phase voltage meters for L1, L2, L3 and grounding
3x Clamp line for L1, L2, L3 (ODU-3-pol)
1x Power supply for RS485 module
1x RS485 Modbus (ODU-8-pol)
Clamp line
100A: maximum wire diameter 24mm
600A: maximum wire diameter 36mm
Interface: RS 485 Modbus RTU
Power supply: 100 - 240 VAC / 50 - 60 Hz
Operating Temperature: 0 ° C - 40 ° C
Storage temperature: -20 bis + 70 ° C
Measurement parameters: Voltage (V), Current (A)
Operating power (KW), display power (kVA), reactive power (KVar)
Active energy (KWh), frequency (Hz), Cos phi
Measurement range: max. 415Volt
Measurement of max. Currents 100A or 600A depending on the current clamp

Application Range: CS-PM 600 is a modern and efficient measuring machine for active / mobile resistance for large machines such as compressors.
With the CS-PM 600, you can perform measurements at machines running without stopping.
Depending on the clamping current used, the flow can be measured up to 100A or 600A.
All measured data will be transferred via RS485 (Modbus) to the mobile DS 500 where they can be displayed, recorded and analyzed.
