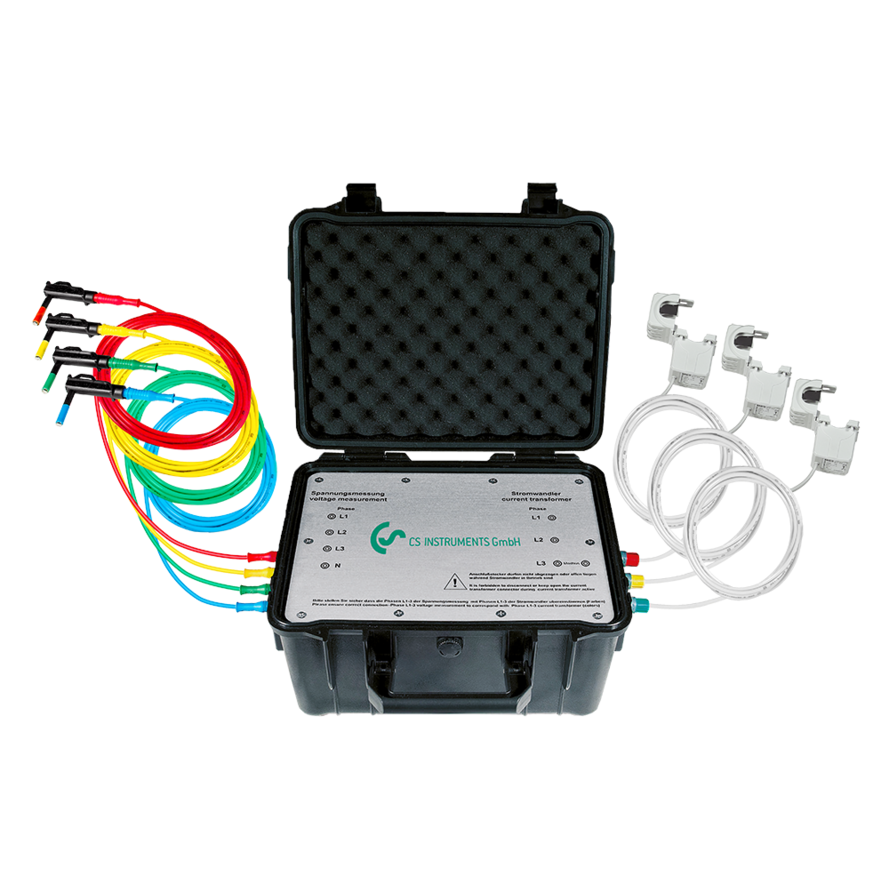

CS Instruments CS PM 600 Current/Effective Power Meter (100A)

Parameters: Voltage (Volt); Current (Ampere); Cos phi; Effective power (kW); Apparent power (kVA); Reactive power (kVar); Active energy (kWh); Power frequency (Hz); All parameters are transferred digitally to DS 500 mobile/DS 400 mobile.

Accuracy active energy: IEC 62053-21 Class 1

Sensor connections:

3 x current transformers (L1, L2, L3, N)

4 x voltage measurement (L1, L2, L3, N)

Interfaces: RS 485 (Modbus protocol)

Measuring range:

Voltage measurement max. 480 V

Current measurement max. 100 A

Size current transformers: 100 A / 1 A (max. 24 mm wire)

Dimension case: 270 x 225 x 156 mm (B x H x T)

Operating temperature: -10…+40°C
