Parameters: m³/h, l/min (1000 mbar, 20°C) in case of compressed air or Nm³/h, Nl/min (1013 mbar, 0 °C) in case of gases
Units adjustable via keys at display: m³/h, m³/min, l/min, l/s, ft/min, cfm, m/s, kg/h, kg/min, g/s, lb/min, lb/h

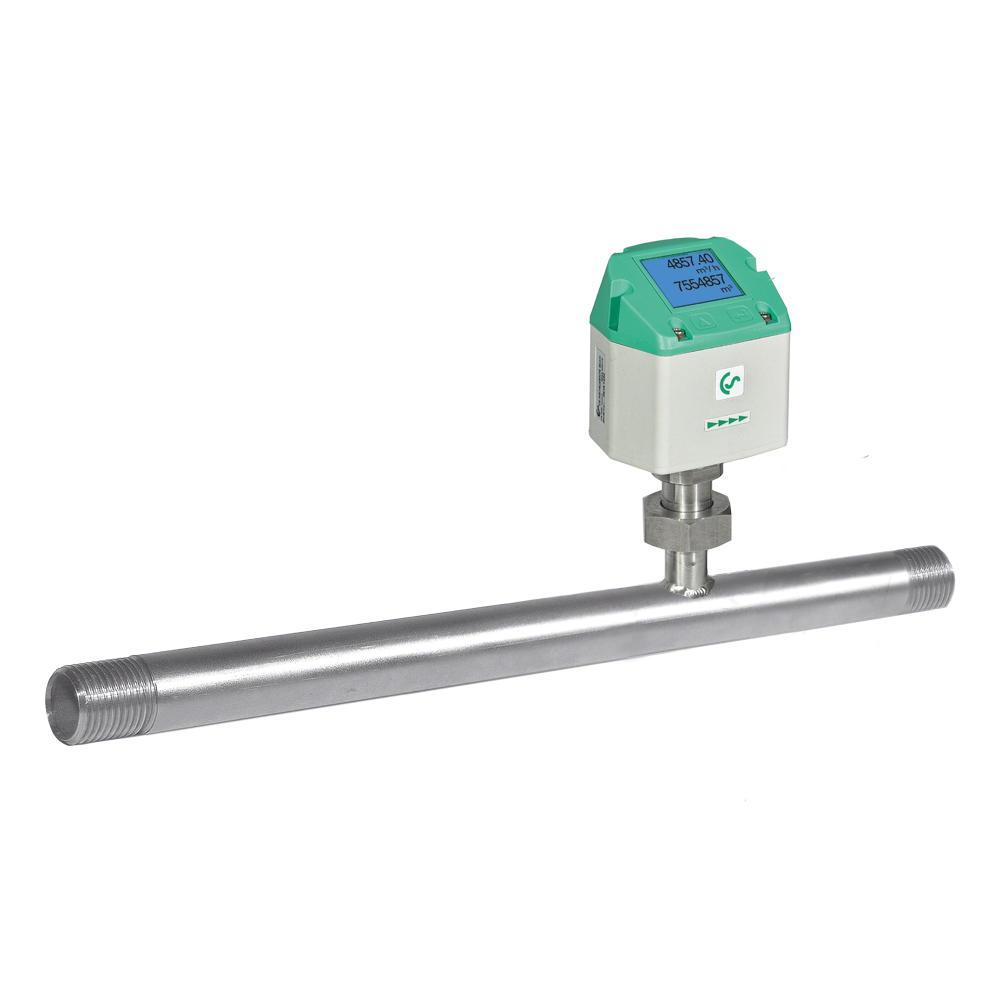

Sensor: Thermal mass flow sensor
Measured medium: Air, gases
Gas types are adjustable over CS service software or CS data logger: Air, nitrogen, argon, CO2, oxygen
Measuring range: See table above
Accuracy: (o. M. V. = of measured value) (o. F. S. = of full scale)
± 1.5% o.m.v. ± 0.3% o.f.s.
± 1% o.m.v. ± 0,3% o.f.s.
Operating temperature: -30…80 °C
Operating pressure: -1 to 16 bar optionally up to PN 40
Digital output: RS 485 interface, (Modbus-RTU), optional: Ethernet interface PoE), M-Bus
Analogue output: 4…20 mA for m³/h or l/min
Supply: 18…36 VDC, 5 W
Burden: < 500 Ω
Housing: Polycarbonate (IP 65)
Measuring section: Stainless steel, 1.4301
