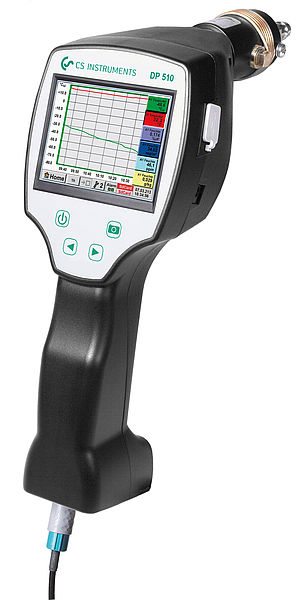

CS Instruments DP 510 (0600 0510) Portable Dew point Meter with Third-party Sensor

Measuring ranges: -80…+50 °Ctd

-20…+70 °C

0…100 % rF

Accuracy: ± 0,5 °Ctd (-10…+50 °Ctd)

± 2 °Ctd (-80...-10 °Ctd)

Dimensions: 125 x 96 x 245 mm

Weight: 500g

Power supply unit: 100 – 240 VAC/50 – 60 Hz, 12VDC – 1A

Integrated data logger for storage of the measured values

USB interface for reading out via USB stick

Calculates all necessary moisture parameters like g/m³, mg/m³, ppm V/V, g/kg, °Ctdatm

Additionally to the internal dew point measurement one further optional sensor can be connected.

So you could meet nearly all industrial measuring tasks like for example:

Separate pressure measurement

Dew point distance via external temperature sensor

Compressed air consumption measurement

Active power in kWh/kW
