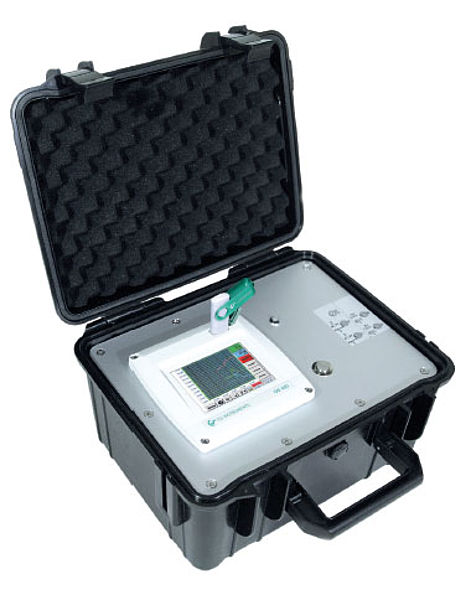

Cs-instruments DS 400 mobile Affordable, mobile chart recorder

Dimensions: 270x225x156 mm
Weight: 2.2 kg
Input Sensors: (2x2) Sensor inputs for analog and digital sensors are freely allocated.
Digital CS sensor for dew point and consumption with SDI interface FA / VA 400 series.
Third-party RS485 / Modbus RTU sensors, other bus systems can be requested.
CS-like sensors for pre-configured pressure, temperature, and clamping amperage.
Similar third party sensors 0/4 - 20 mA, 0 - 1/10/30 V, pulse, Pt100 / Pt1000, KTY.
Interface: USB, Ethernet / RS 485 Modbus RTU / TCP, other SDI bus system on request, optional web server
Power supply: 100 - 240 VAC / 50 - 60 Hz with 12VDC output
3.5 "color screen -Touchpanel TFT transmissive, graphic, curve, statistics
Accuracy: See specifications for the sensor
Operating Temperature: 0 - 50 ° C
Storage temperature: -20 + 70 ° C
