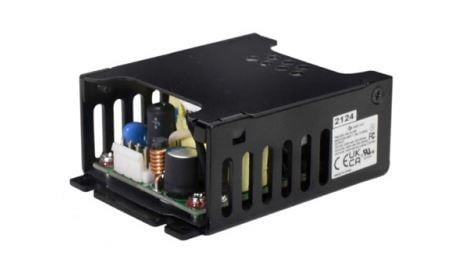

Width: 64 mm (2.52 in)
Height: 34.5 mm (1.358 in)
Length: 91.4 mm (3.598 in)
Industry: Industrial
Approvals: CE, IEC
Dimensions: 91.4 mm x 64 mm x 34.5 mm
Efficiency: 93 %
Output Power: 130 W
Input Voltage: 80 VAC to 264 VAC
Mounting Style: PCB
Input Frequency: 47 Hz to 63 Hz
Load Regulation: Regulated
Isolation Voltage: 3 kVAC
Number of Outputs: 1 Output
Open Frame/Enclosed: Enclosed
Output Current-Channel 1: 5.4 A
Output Voltage-Channel 1: 24 VDC
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 30 C
