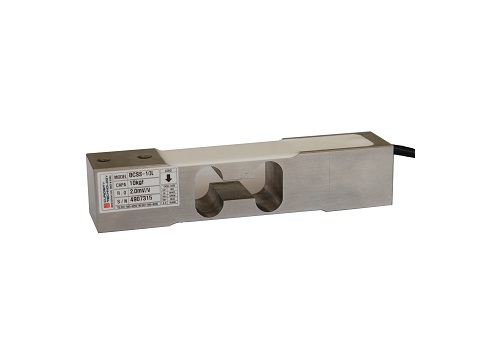

Max.Capacity (kgf ):30kgf
Rated output ( mV/V): 2.0±0.2
Zero balance ( mV/V): 0.0±0.1
Combined error (%): 0.03
Repeatability (% ): 0.01
Creep (30 min.) ( % ): 0.03
Temperature effec on
+ Zero value (%/℃ ): 0.028
+ Output value (%/℃): 0.014
Excitation
+ Recommend (V ): 10
+ Maximum ( V): 15
Resistance ():
+ Input (Ω ): 380±30
+ Output ( Ω): 350±3.5
Insulation ( ㏁): ＞2,000 @50V DC
Compensated temp.range (℃): -10~+40
Operating temp, ( ℃ ): -20~+80
