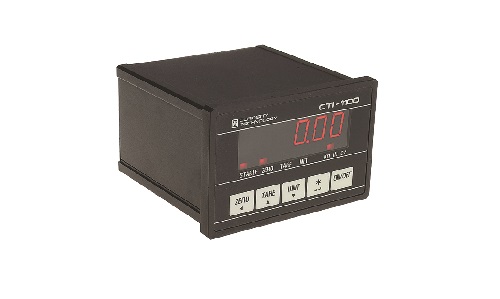

CURIOTEC CTI-1100 Digital Indicator

Analog Part

Load Cell Excitation Voltage: Dc 5V Up To 6 X 350 Ohm Load Cells

Full Scale Input Signal: 20 Mv Including Dead Load

Zero Adjust Range: -5Mv~5Mv

Input Sensitivity: 2Μv/D (H-44.Oiml)

System Linearity: With 0.01% Of Fs

A/D Internal Resolution: Approximately 200000 Counts

A/D External Resolution: 5000 Dd (H-44.Oiml)/30000 Dd (Non H-44.Oiml)

A/D Conversion Speed: 20 Times/Sec

Digital Part

Span Calibration: Full Digital Calibration (Single Pass Automatic Span Cailibration)

Display: Led (6 Digit)

Size Of Letter: 14 Mm (Height)

Display Below Zero: "---" Minus Signal

Additional Symbols: Stable Zero Tare Net Kg Lb Oz

Ac Adapter: Ac 220V/120V 50-60 Hz (Dc 12V 500Ma)

Power Consumption: 10W

Operating Temperature: -10°C To +40°C

Overall Dimensions: 114(W) X 105(D) X 70(H) (Mm)

Weight: 0.5Kg
