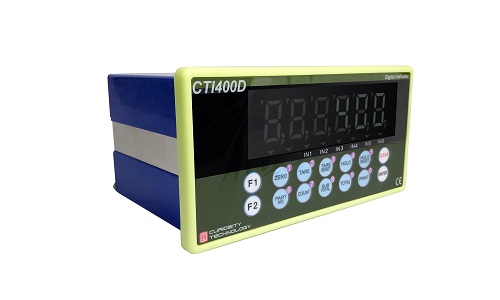

CURIOTEC CTI-400D Digital Load Cell Indicator

Specifications

Digital Load Cell Interface:

+ Excitation Voltage: Dc 12V

+ Load Cell Connection: Max. 8 Ea

+ Communication Mode: Rs-485

+ Communication Speed: 2400 Bps 115200 Bps

Operation Condition

+ Temperature Range: -10°C~+40°C [14°F ~ 104°F]

+ Humidity Range: 40%-85% Rh Non-Condensing

Function

+ Calibration Mode: Weight Calibraton

+ Display: 6 Digit 25.4Mm(1Inch) Red Fnd; 7 Ea Weight Unit Red Led ; 8 Ea State Display Green Led; 12 Point Green Led

+ Key: 14 Ea

+ External Input: 6 Ea

Communication: Serial Port1 (Rs-232C): Data Transmit Serial Printer Modbus(Rtu)

Power: Ac 110~220V Approx 14W

Product

+ Size: 200Mm(W) X 100Mm(H) X 126.5Mm (D)

+ Weight: Approx. 1.2 Kg
