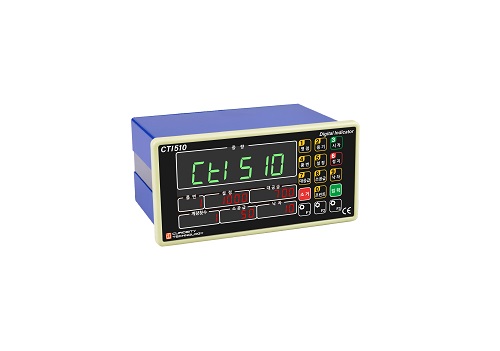

CURIOTEC CTI-510 Digital Weighing Indicator

Analog Part:

Input Sensitivity: Min. 0.2 V/Digit

Load Cell Excitation: DC 10V

Non-Linearity: 0.005% of Full Scale

Input Signal: Max 3.2 mV/V

A/D Method & Sampling: Max 500 times/sec, Sigma-Delta

Resolution : Internal: 1/520 000 (19 bit), Display: 1/20,000

Display Part:

Main Display: 7 Segment, 6 Digit Red FND, H: 12.7mm

Red LED: SP1 , SP2, SP3, g, kg, t

Status LED: STEDY, ZERO, TARE, GROSS, WEIGHT, AUTOMATIC, PRINTER, COMMUNICATION

General Part:

Power Supply: Free Voltage (AC190V ~ 250V; 50/60 Hz)

Operating Condition: Temperature: -10°C~+40°C, Humiduty: Under 85% F

Size/Weight: 200(W) x 175(H) x 105(D) mm / 4.0 kg

Interface: RS-232C & CURRENT

External Input: 4 EA

Relay Output: 6 EA

Option: Analog Output 0~10V, 4~20mV / RS232C / RS422 RS485/BCD Input / BCD Output / Ethernet
