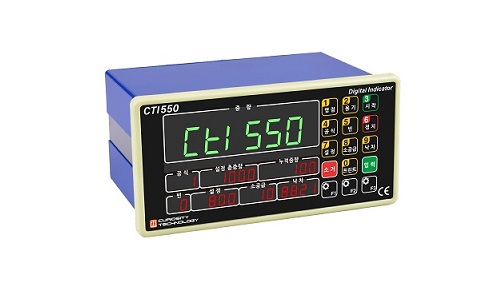

CURIOTEC CTI-550 Digital Weighing Indicator

Analog Part:

Input Sensitivity: Min. 0.1 V/Digit

Load Cell Excitation: DC 5V

Non-Linearity: 0.001% of Full Scale

Input Signal: Max 3.0 mV/V

A/D Method & Sampling: Max 60 times/sec, Sigma-Delta

Resolution : Internal: 1/2,000,000 (±1,000,000), Display: 1/20,000

Display Part:

Main Display: 7 Segment, 6 Digit Red / Green Dual Color FND, H: 20mm(1inch)

Sub Display: 7 Segment, 15 digit Red FND 2-line, H: 9.0mm

Status LED: STEDY, ZERO, TARE, HOLD, RUN, TxD, RXD, OUT 1-7( 16pcs Red / Green Dual Color), Spare 2 pcs

Under ZERO Value: Minus (-) Display

Unit Display : g, kg, t, pcs, oz, lb

General Part:

Power Supply: Free Voltage (AC100V 240V, 50/60 Hz, 20W)

Operating Condition: Temperature: -10°C~+40°C, Humiduty: Under 85% F

Size/Weight: 200(W) x 100(H) x 127(D) mm / 1.25 kg

Interface: RS-232C & CURRENT

External Input: 6 EA

Relay Output: 7 EA (User Selectable)

Option: Analog Output 0~10V, 4~20mV / RS232C / RS422 RS485/BCD Input / BCD Output / Ethernet /SD Memory card / Wireles Interface
