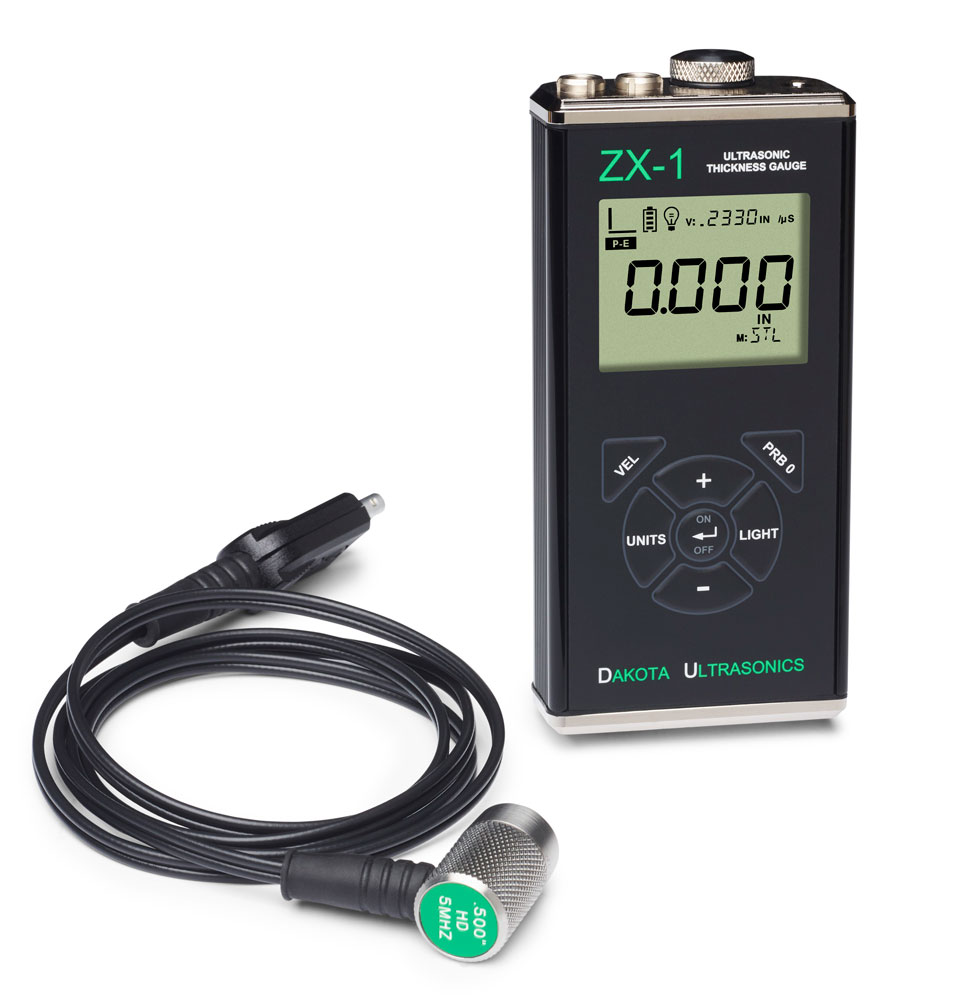

Range: Measures from 0.025 to 36.00 inches (0.63 to 914.4 millimeters). Range dependent on material and transducer type.
Units: English & Metric
Resolution: 0.001 inches (0.01 millimeters)
Velocity Range: 0.0120 to .7300 in/μs (305 to 18,542 m/sec)
PRF: 200Hz
Display Update Rate: 10Hz
Power source
Two 1.5V alkaline, 1.2V NiCad, or 1.5V Lithium AA cells
Weight: 11 ounces (with batteries).
Size: Width (2.5 in / 63.5 mm)
Height (5.17 in / 131.3 mm)
Depth (1.24 in / 31.5 mm)
Operating Temperature: -22 to 167F (-30 to 75C).
Case: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Velocity Settings: ZX-1 adjustable on keypad.
