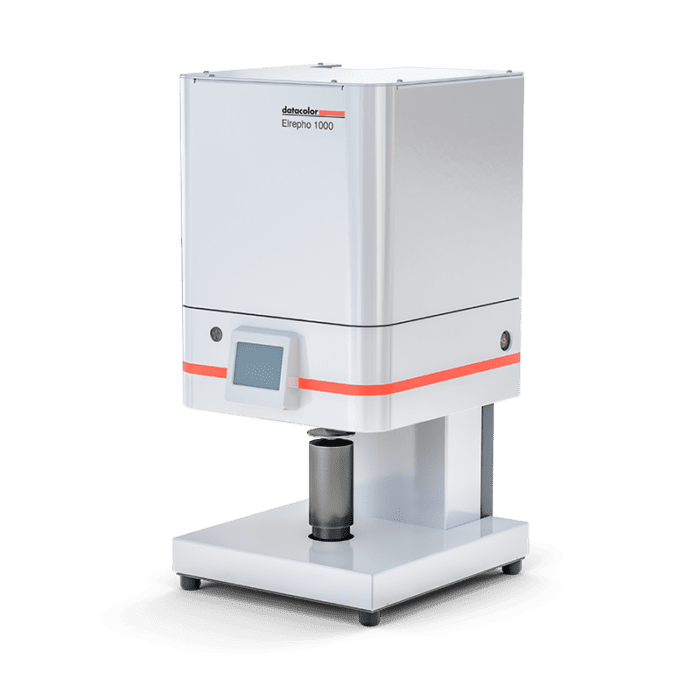

Datacolor Elrepho 1000 High performance spectrophotometer (0-200%)

Instrument Type:Dual-beam spectrophotometer

Measurement Geometry:Diffuse illumination and 0º viewing in conformance with ISO 2469

Illumination Source:Pulsed xenon filtered to approximate D65

Sphere Diameter:152 mm/6.0 in

Spectral Analyzer:SPX analyzer with dual 256 diode array and high-resolution holographic grating

Wavelength Range:360 nm to 700 nm

Reporting Interval:10 nm

Photometric Range:0 to 200%

Photometric Resolution:0.003%

20 read repeatability on white tile using dual flash (CIELAB) (1):0.02 CIEL*a*b*(max)

Inter-instrument agreement: reflectance measurements (CIELAB) (1, 2 &3):0.4 (maximum excluding black tile) CIEL*a*b*, 0.25 (average) CIEL*a*b*

Sample Temperature:XLAV Aperture 34 mm illuminated and 30 mm measured

IR Sensor Accuracy:±0.9°F/ ±0.5°C

Lens:3-position, auto zoom

Aperture detection:Yes

Automated UV control:Automatic UV calibration for the measurement of fluorescent specimens with UV cutoff filters at 395 nm, 420 nm and 460 nm

UV cutoff filters:395nm, 420nm, 460nm

XLAV Aperture plate:34 mm illuminated and 30 mm measured

LAV Aperture plate (optional, sold separately):30mm illuminanted and 26 mm measured

SAV Aperture plate:9mm illuminated and 5 mm measured

USAV Aperture plate:6.5 mm illuminated and 2.5 mm measured

Remote Measurement button:Yes

Sample Positioning Camera:Yes

Vertical Mount:Yes

Functional Operating Environment (2):5º to 40º C, 5% to 85% non-condensing relative humidity

Physical Specifications:

Color Display:3.5 inch RGB LCD

Display Resolution:320 x 240 pixel resolution

Weight:24.7 kg / 54.5 lbs

Dimensions:25.0″/ 63.5 cm (Height) 12.2″/ 39.9 cm (Width) 16.3″/ 41.4 cm (Depth)

Power Requirements:100 to 240 VAC, 50/60 Hz, 80 VA

Power Requirements:100 – 240 VAC, Frequency 50/60 Hz, Power Rating: 80 VA

Data Interface:USB 2.0 / Ethernet
