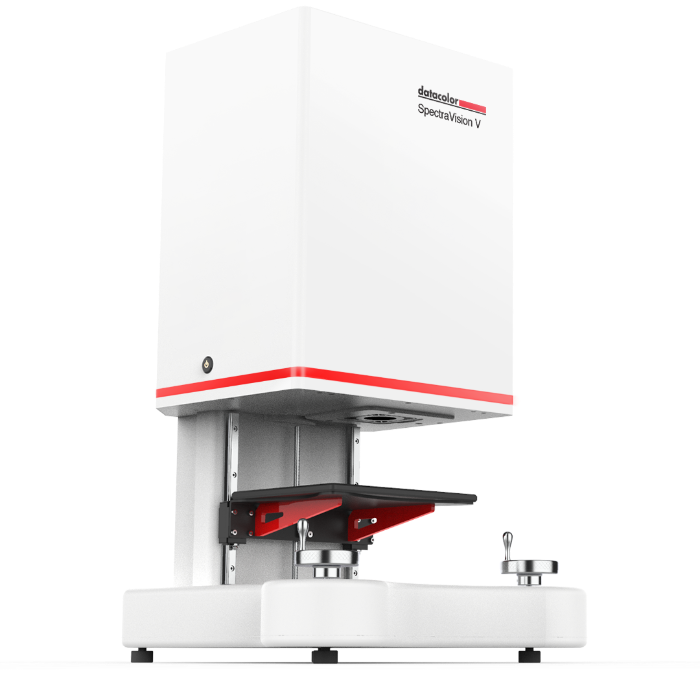

Datacolor SpectraVision Vertical Benchtop Spectrophotometer (0-200%)

Instrument Type:Barium coated sphere with xenon flash lamp, Diffuse illumination, 8º viewing in conformance with CIE publication No. 15.2 Colorimetry

Light Source:Pulsed xenon, filtered to provide D65 illumination including UV component.

Sphere Diameter:Diameter 152 mm / 6.0 inches, Barium coated

Wavelength Range:400 – 700 nm

Reporting interval:10 nm

Photometric range:0 to 200%

Spectral Analyzer:Hyperspectral imaging assembly with 31 narrow bands covering 400 to 700 nm. The imaging is with a scientific 90 db camera with a sCMOS sensor.

20 read repeatability on white tile (CIELAB) (1):0.03 dE (max)

Inter-instrument agreement: reflectance measurements (CIELAB) (1,2 & 3):0.25 (max)* 0.15 (avg)*

Lens:50 mm, fixed focus

Aperture Plates:Square. 25 mm illuminated/ 22.7 mm viewed

Automated, adjustable UV calibration:Yes

UV cutoff filters:400 nm; 420 nm; 460 nm

Functional Operating Environment (2):Temperature: 10°C to 35°C, Recommended Temperature: 23°C +/- 2°C, Maximum Relative Humidity: 20%-85% non-condensing, Recommended Relative Humidity: 50% +/-15% non-condensing, Altitude: Up to 2,000 meters, Do not store above 140°F (60°C),

Vertical Mount:Yes

Physical Specifications:

Power Requirements:Input Voltage: 100-240VAC, Frequency: 50/60 Hz, 150 VA Peak

Power Consumption:150VA

Weight:146 lbs. (66.22 kgs)

Dimensions:Instrument body (top section): Depth (front to back) 13.5” (34.29 cm) Width 15” (38.1 cm) Instrument base (stand): Depth (front to back) 19” (48.26 cm) Width 19.5” (49.53 cm) Instrument standing height: Base feet to top of instrument 31.75” (80.64 cm)

Additional Technical Specifications:

Data Interface:Ethernet

Other Interface(s):HDMI (Video)/USB:2.0 (Keyboard,Mouse)

Image Resolution:821 x 821

Effective Pixel Size:27.6 micrometers

Output:QTX2, Reflectance Hypercube, QTX

 Additional Functional Data  :

Software Connection:Tools SV
