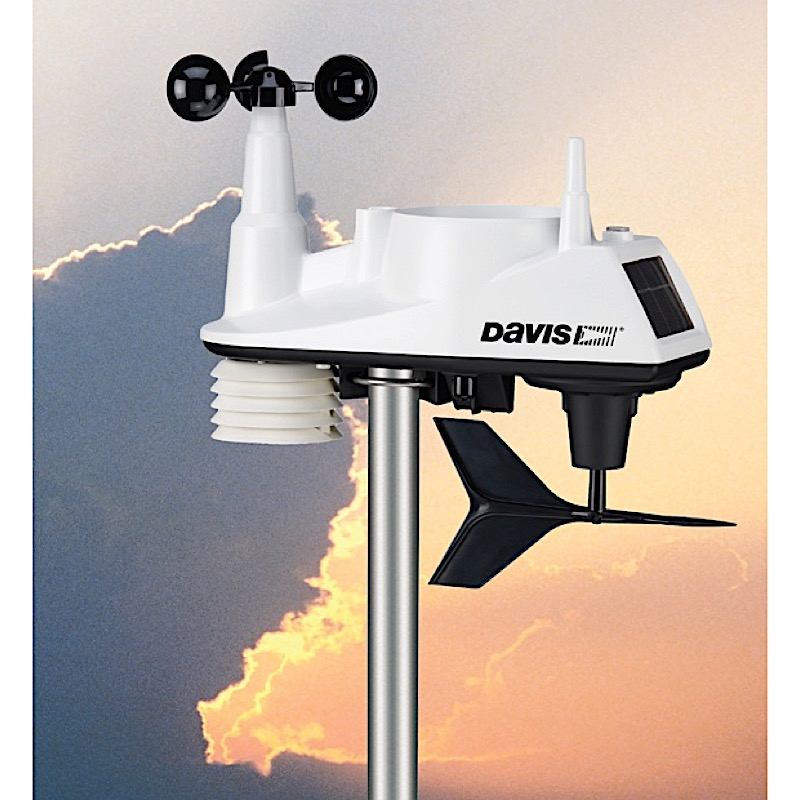

DAVIS SKU 6250 Multi-function Air Humidity Meter

Parameters Sensor ISSVantage Vue Integrated Sensor Suite; Code: 6357

Operating temperature range: -40 ° to + 150 ° F (-40 ° to + 65 ° C)

Storage temperature: -40 ° to + 158 ° F (-40 ° to + 70 ° C)

Current: 0.20 mA (average), 30 mA (peak) at 3.3 VDC

Solar set: 5 Watts

Battery: CR-123 3-Volt Lithium cell

Battery life (3-Volt Lithium cell): 8 months without sunlight | more than 02 years depending on the solar battery

Wind Speed ​​Sensor: Wind cups with magnetic switch

Wind Direction Sensor: Wind vane with magnetic encoder

Rain Collector Type: rain checker, 0.01 "per head (0.2 mm with rain gauge filter set, code: 7345,319), rain area 116 cm2

Temperature Sensor Type: PN Junction Silicon Diode

Relative Humidity Sensor Type: Film capacitor element

Structural shell with ABS plastic and ASA UV resistant

Dimensions: 329 mm x 146 mm x 340 mm

Weight: 2.47 kg

Vantage Vue Wireless Console controller parameters; Code: 6351

Controller operating temperature: 0 ° to + 60 ° C

Controller storage temperature range: -10 ° or + 70 ° C

Controller current: average 0.9 mA, 30 mA peak, (120 mA for bright display light, 0.125 mA for each transmitter station set controlled by console) at 4.4 VDC

Power adapter: 5 VDC, 300 mA

Backup battery: 3 C-cells

Battery life (without AC power): about 09 months

Grade with UV resistant ABS plastic

The LCD screen reflects backwards

Bright LEDs background

Size

Controller (with iantenna): 190 mm x 146 mm x 114 mm

Controller (with antenna) on wall: 190 mm x 178 mm x 76 mm

Display: 105 mm x 76 mm

Weight (with battery): 0.67 kg

Wireless signal transmitter specifications:

Data transmission / reception frequency:

+ US Models: 902 - 928 MHz FHSS

+ Overseas Models: 868.0 -868.6 MHz FHSS

Built-in ID Codes: 8

Output power:

+ 902 - 928 MHz FHSS: FCC-certified low power, less than 8 mW, no license required

+ 868.0 -868.6 MHz FHSS: CE-compliant, smaller than 8 mW, no copyright required

Limit:

+ Empty range: up to 1000 feet (300 m)

+ Through walls: 200 to 400 feet (60 to 120 m)

Measured parameters:

Pressure:

Pressure gauge: 16.00 "to 32.50" Hg, 410 to 820 mm Hg, 540 to 1100.0 hPa / mb

Pressure resolution: 0.01 "Hg, 0.1 mm Hg, 0.1 hPa / mb

Pressure accuracy: ± 0.03 "Hg

Update time for measuring pressure: 1 minute

Store every 15 minutes: day, month, year, high and low pressure

Time:

Measuring range 12 or 24 hours

1 minute resolution

Accuracy: ± 8 seconds / month

Dew point (calculated value):

Range: from -76 ° to + 54 ° C

Accuracy: ± 1.5 ° C

Resolution: 1oC

Evaporation (escape) level of steam:

Measured daily to 999.9mm

Measured monthly, every year: up to 1999.9mm

Forecast:

Over time: hours

Indicators: pressure (varies), wind speed and direction, precipitation, temperature, humidity, longitude, latitude, time

Precipitation: 0 to 6553 mm, accuracy of 4%. Resolution: 0.2mm

Rain speed: 1mm / hour to 1016mm / hour

There are also many other parameters such as: thermal radiation, humidity, moon phase, solar radiation, sunrise time, sunset, ultraviolet radiation ...

Dimensions: 329 mm x 146 mm x 340 mm

Weight: 2.47kg

Provide cover:

Meteorological weather station; Vantage Vue (code: 6250);

provide cover:

Vantage Vue Wireless Console; code: 6351

Vantage Vue Integrated Sensor Suite; code: 6357

User manual

Additional purchase options:

Weather Link PC connection software

Head support
