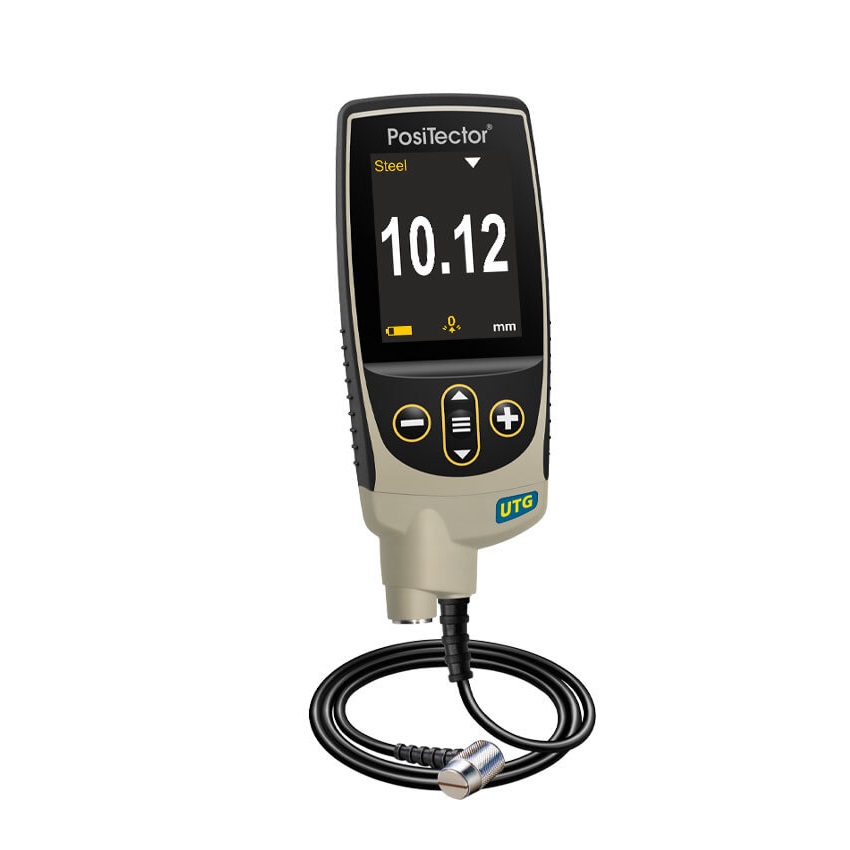

DEFELSKO UTGC1 PosiTector Ultrasonic Thickness Gage (Standard)

Application: Measures the wall thickness of materials such as steel, plastic and more. Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side

Probe Style: 5 MHz Dual Element

Mode: Single Echo

Measurement Range: 1.00 to 125.00 mm (0.040" to 5.000")

Thru-Paint Capability: no

Measurement Rate – Normal: 6 readings/sec

Measurement Rate – Normal: 20 readings/sec

Resolution: 0.01 mm (0.001")

Accuracy: ±0.03 mm (±0.001")

Monochrome display with transflective technology enhances sunlight readability

Storage of 250 readings—stored readings can be viewed or downloaded

Automatic V-Path compensation for thin materials

Size: 146 x 61 x 28 mm (5.75" x 2.4" x 1.1")

Weight: 140 g (4.9 oz.) without batteries

ALL GAGES COME COMPLETE with body and probe, couplant, protective rubber holster, belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, PosiTector.net account
