Input Voltage and Frequency (External Adapter): AC/DC Power Adapter
Power Input: 100-240 VAC, 50/60 Hz
Power Output: 12 VDC, 0.5 A
Cable Length: 6 ft (1.83 m)
Operating Temperature:
70 to 85 °F (21 to 30 °C) for 1 gigohm test limit
41 to 85 °F (5 to 30 °C) for all other test limits
Environmental Requirements Indoor use only at altitudes less than 6500 ft (2 km)
Maximum relative humidity of 80 % up to 85 °F (30 °C) decreasing linearly to 50 % @ 85 °F (30 °C)
Maximum relative humidity of 50 % at 1 gigohm setting
Dimensions (with mounting plate): 11.35" x 7.75" x 1.47" (288 mm x 197 mm x 37 mm)
Weight (with mounting plate): 1.2 lbs (0.5 kg)
Test Accuracy:
±20 % for 1 gigohm footwear test limit
±10 % for all other test limits
Test Switch Voltage 5 VDC @ open circuit
Wrist Strap and Footwear Test Voltage:
30 VDC @ open circuit
Test current is limited by resistors and varies on the test range setting (100 kilohms - 1 gigohm)
Relay Contact Rating: 1 A @ 30 VDC max
Tech Specs
Personnel Grounding Testers Template
Testing Material: Wrist straps and footwear
Test Equipment General Attributes

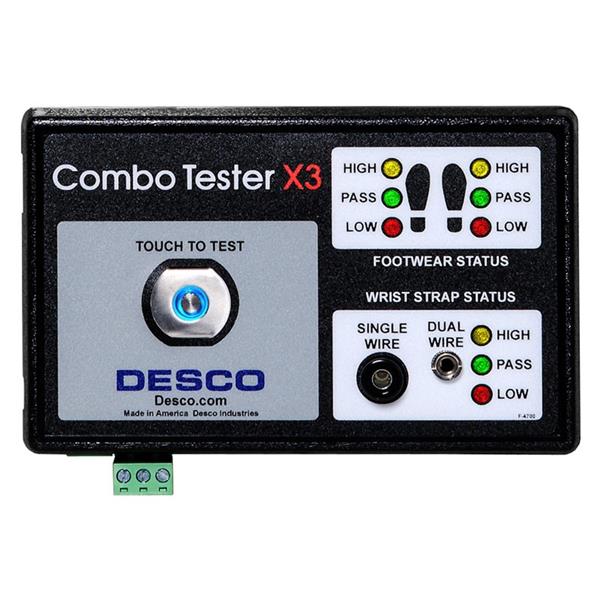

Unique Features: Combo Tester X3 - tester only. Does not include stand or dual foot plate
Product Weight: 0.68 LBS
Power Supply Voltage: 120V/220V Universal
