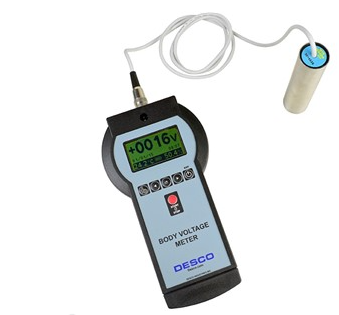

Desco 19431 Body Voltage Meter (± 1050 V)

Specifications

Voltage Range: ±1050 V

Accuracy: ±5 V for values below 100 V

±5 % for values 100 V and above

Resolution: 1 V

Input Resistance: 10^14 ohms

Power Supply: 6 AA alkaline batteries

Battery Auto-Shut Off Timer: 10 minutes

Display: Graphic LCD 128 x 64 pixel, 68 mm x 51 mm

Memory Capacity: 10 graphs

Sample Rate: 200 Hz

Max Total Graphs Duration: 2 minutes and 30 seconds

PC Interface: USB

Operating Temperature: 41 ºF to 85 ºF (5 ºC to 30 ºC)

Environmental Requirements: Indoor use only at altitudes less than 6500 ft. (2 km)

Maximum relative humidity of 80 % up to 85 °F (30 °C)

Dimensions (meter): 9.6" x 5.1" x 2.4"

(243 mm x 130 mm x 60 mm)

Dimensions (probe): Ø 1.4" x 5.1"

(Ø35 mm x 130 mm)

Weight (meter with batteries): 1.4 lbs (650 g)

Weight (probe): 0.6 lbs (0.27 kg)
