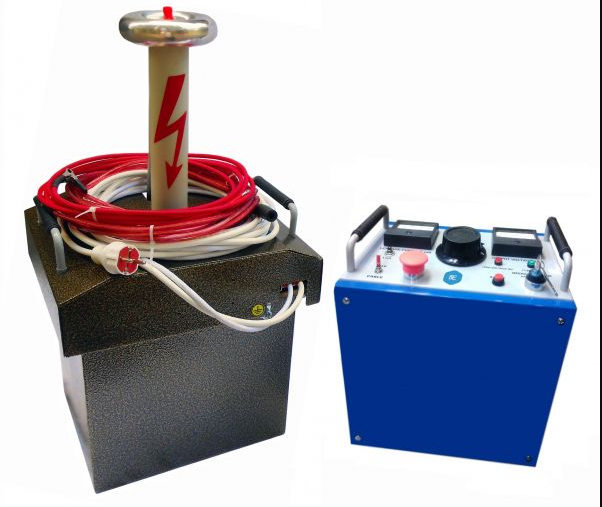

DTE 70/50 high voltage testing device (AC:50kV, DC:70kV)

Name: DTE 70/50 high voltage testing device (AC:50kV, DC:70kV)
Brand: DTE

ManufacturerDTE(View more products from this manufacturer)

Model70/50

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Output voltage type: DC AC

Maximum output voltage, kV 70 50

Maximum output current, mA 15 45

Output voltage measuring range, kV 0.5-70 0.5-50

Measuring range of output current, mA 0-1; 0-15 no measurements

Overcurrent protection, mA, max. 16 46

Limit of overcurrent protection unit HV, A 10 10

Supply voltage 220V +/- 22V; 50 (60) Hz

Error of measuring current and voltage,% 3 (full reading)

Weight control unit, kg 11

Unit weight high voltage, kg 44

Controller unit size, mm 315x220x365

High voltage unit size, mm 360x285x670

DTE-70/50 high voltage testing device

High-voltage testing device DTE-70/50 (hipot) is designed for insulation testing of high voltage cables with rectified voltage up to 70 kV DC (also non-liquid dielectrics (switchgears, arresters, insulators, dischargers, reclosers, busbars etc.) and other objects with AC voltage up to 50 kV. The hipot tester has analog kilovoltmeter and ammeter scales.
