Color: Black
Pitch: 5.41 mm (0.213 in)
Width: 51.26 mm
Gender: Plug (Male)
Height: 45.69 mm
Length: 52.53 mm
Application: Power, Signal
Row Spacing: 5.41 mm
Contact Type: Socket
REACH - SVHC: Details
Contact Gender: Without Socket Contacts
Current Rating: 13 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 7 Row
Voltage Rating: 250 VDC
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Housing Material: Polyetherimide (PEI)
Wire Gauge Range: 14 AWG to 20 AWG
Lock Mate Feature: Integrated in Housing
Termination Style: Crimp
Ingress Protection: IP67
Flammability Rating: UL 94 HB
Number of Positions: 40 Position

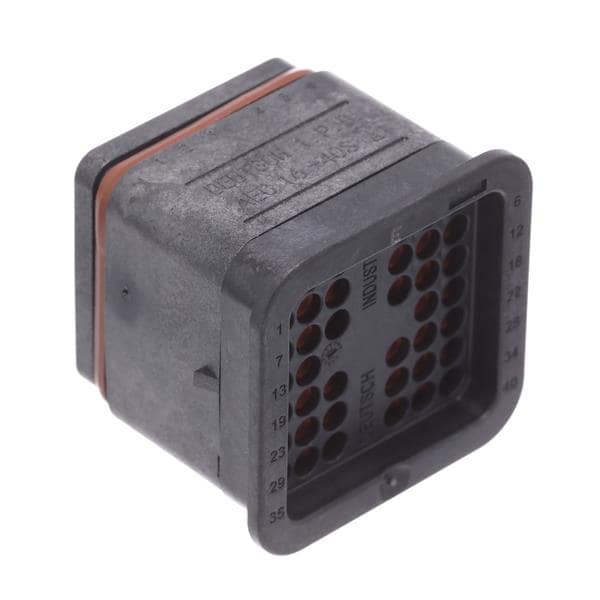

Description/Function: DEUTSCH DRC, Housing for Female Terminals
Attachment Hole Diameter: 1.5 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
