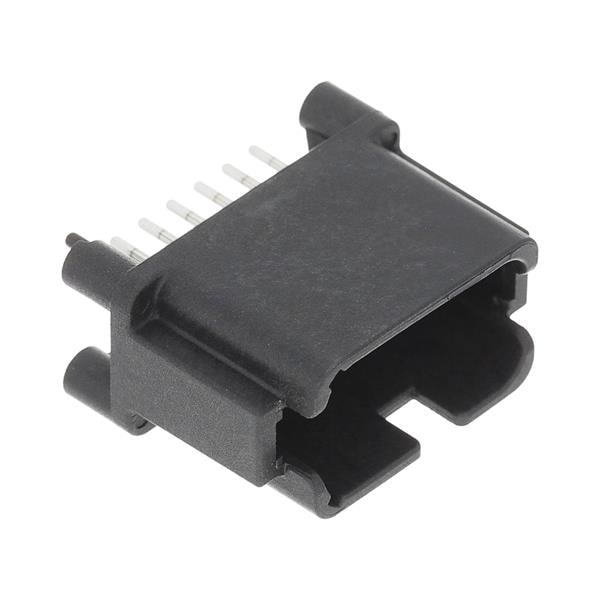

Color: Black
Pitch: 1.45 mm (0.057 in)
Width: 43.94 mm
Gender: Receptacle (Female)
Height: 34.98 mm
Length: 34.98 mm
Material: Plastic
Dimensions: 43.94 mm x 34.98 mm x 34.98 mm
Application: Wire to Board/Device
Row Spacing: 9.12 mm
Unit Weight: 20 g
Mating Gender: Plug
Contact Gender: Pin (Male)
Current Rating: 13 A
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 2 Row
Voltage Rating: 250 V
Wire Gauge Max: 16 AWG
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Polyamide (PA)
Wire Gauge Range: 16 AWG
Termination Style: Solder Pin
Ingress Protection: IP67
Mating Part Number: DT06-12SB-xxx
Flammability Rating: UL 94 V-0
Number of Positions: 12 Position
Attachment Hole Diameter: 1.5 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
