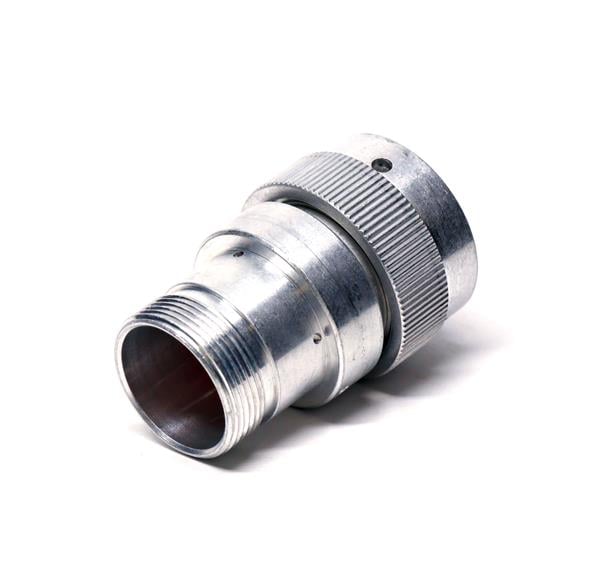

Width: 42.97 mm
Gender: Plug (Male)
Height: 77.7 mm
Length: 42.97 mm
Material: Aluminum
Dimensions: 42.97 mm x 77.7 mm x 42.97 mm
Application: Wire to Wire
Unit Weight: 112.254 g
REACH - SVHC: Details
Contact Gender: Without Pin Contacts
Current Rating: 7.5 A, 13 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Voltage Rating: 250 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 22 AWG
Housing Material: Aluminium
Wire Gauge Range: 22 AWG to 14 AWG
Locking Mechanism: Integrated in Housing
Termination Style: Crimp
Ingress Protection: IP67
Mating Part Number: HD34-18-XXXX
Number of Positions: 20 Position
Attachment Hole Diameter: 1.5 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
