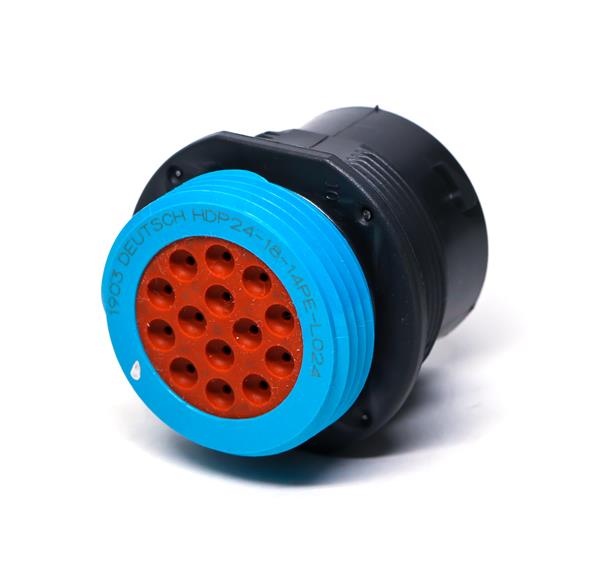

Color: Black
Width: 44.45 mm
Gender: Receptacle (Female)
Height: 41.28 mm
Length: 41.86 mm
Dimensions: 44.45 mm x 41.28 mm x 41.86 mm
Insulation: Insulated
Application: Wire to Wire
Unit Weight: 37.170 g
REACH - SVHC: Details
Contact Gender: Without Pin Contacts
Current Rating: 13 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Voltage Rating: 250 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 14 AWG to 20 AWG
Locking Mechanism: Integrated in Housing
Termination Style: Crimp
Ingress Protection: IP67
Mating Part Number: HDP26-18-17SE-CL20
Number of Positions: 14 Position
Attachment Hole Diameter: 4 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
