Application:
6V and 12V battery tests
12V start-stop battery tests
12V and 24V cranking/charging system tests
Internal resistance tests
Supported Battery Types: Flooded, AGM Flat Plate, AGM Spiral, EFB, VRLA/GEL
Supported Battery Ratings: CCA/SAE, EN, EN2, IEC, JIS, DIN, CA/MCA
Operating Range: 25 to 3,000 CCA(SAE)
Voltage Range: 1V to 32V
Sensor Array:
Barcode Scanner
Temperature Sensor
Wireless Connection: Wi-Fi 802.11 b/g/n
Wired Connection: USB Type-A
Firmware Update: Yes (via Wi-Fi)
DHC Cloud Services (mybatteryexpert.com): Supported (powered by AWS)
PC Software: –
Test Code and Test Counter: Yes (supports recall and print of test results of the last 7 days)
Printer: 2-inch thermal printer
Display: Coloured TFT-LCD (240×320)
Input Device: 6-key keypad (up, down, left, right, enter, back)
Clamp-Cable Set Length: 1.8 metres (approx. 5.9 feet)
Detachable Cable: Yes
Internal Battery Support:
AA Alkaline/NiMH batteries
18650 Li-ion batteries
Voltage Probe: Supported (sold separately)
Amp Clamp: Supported (sold separately)
Dimensions (L × W × H): 285 × 140 × 75 mm (approx. 11.2 × 5.5 × 3 inches)
Operating Languages: English, French, Spanish, German, Italian, Portuguese, Polish, Dutch, Turkish (more languages possible)

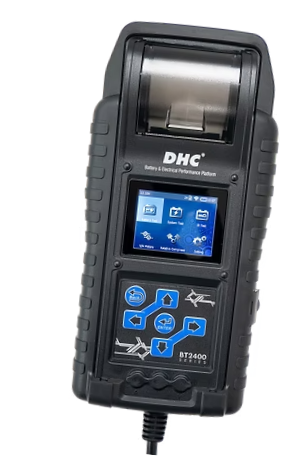

The BT2400 PRO combines decades of battery testing know-how into one dependable and flexible package for professionals and enables tests to be conducted with speed, convenience, and accuracy.
Features:
Battery, Cranking, and Charging System Tester
6V, 12V, and 12V Start-Stop Battery Test
12V & 24V Cranking/Charging System Test and IR Test
TFT-LCD Display with Intuitive Graphical User Interface
Wired & Wireless Connectivity via WiFi or USB Type-A Port
Upload test results automatically through Wi-Fi.
Store and manage data through our cloud interface.
Integrated 1D/2D Barcode Scanner
Flexible Integrated Battery Type: AA or 18650 Li-Ion batteries
Thermal Sensor for Battery Temperature Detection and Compensation.
Built-in 2” Thermal Printer & Customizable Facility Information
Detachable/Replaceable 5.9’ Cable
Built-in Clamp and Cable Diagnostic Capability
Strong and Durable Heavy-Duty Case Design
Test Code Decoder for Decoding and Saving Test Records
Recall and Print Last 7 Days Test Results
12-Month Warranty
User Manual
