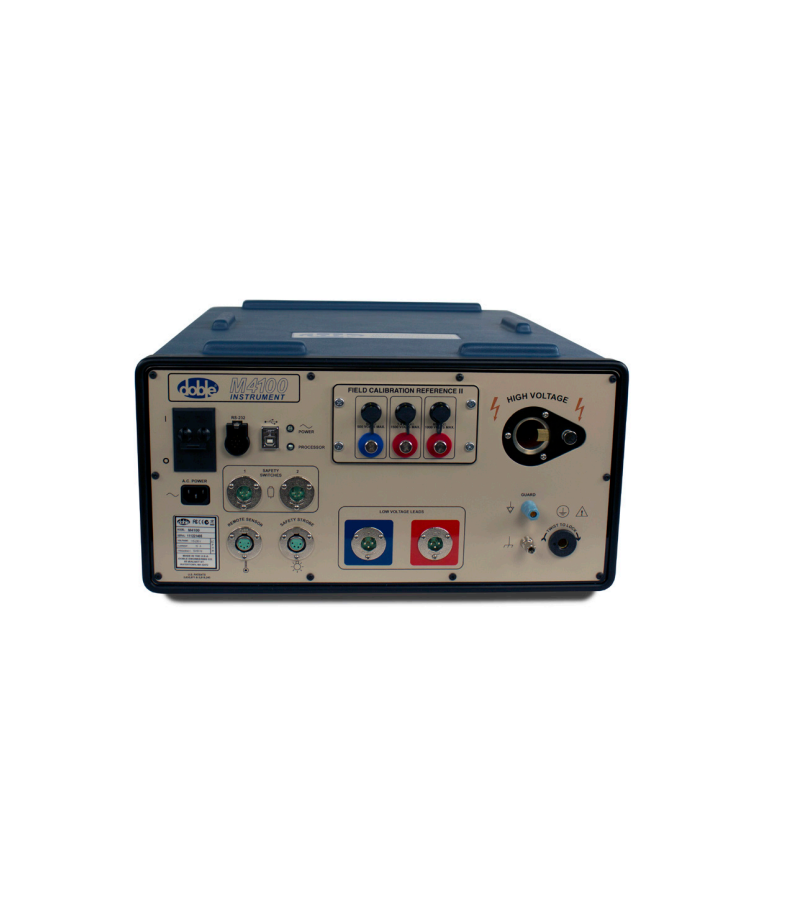

Doble M4100 High Voltage Apparatus Tester

POWER

Output Voltage: 0 to 12 kV ac

Output Current:

Continuous @ 100 mA at 10 kV

30 minutes @ 200 mA at 10 kV

4 minutes @ 300 mA at 10 kV

Operating time period based on 50°C operating temperature.

Longer durations at high currents will be realized at lower operating temperatures.

Output Power: 3 kVA

Sinusoidal output signal internal generated independent of input supply

No loss in performance when used with portable generator.

A.C. Input:

95-264 V AC 47 to 63 Hz

16 A max at 110 V

10 A max at 220 V

TEST FREQUENCY

Range: 45 to 70 Hz independent of input signal

Resolution: 0.1 Hz

Accuracy: ± 1% of reading

TEST VOLTAGE

Range: 25 V to 12 kV

Resolution: 1 V

Accuracy: ± 1% of reading

TEST CURRENT

Range: 0 to 5.0 A

Resolution: 0.1 μA

Accuracy: ± 1% of reading, ±1 μA

CAPACITANCE

Range: 0 to 100 μF

Resolution: 0.01 pF

Accuracy: ± 0.5% of reading, ± 1 pF

INDUCTANCE

Range: 6 H to 10 MH

Resolution: 0.01 H

Accuracy: ± 0.5% of reading

WATTS

Range: 0 to 2 kW, actual

Resolution: 0.5 mW

Accuracy:

± 2% of reading at 10 kV

± 0.03% of VA, ±0.5 mW

POWERFACTOR/TAN-DELTA

Range

% PF: 0 to ± 100.00%

PF: 0 to ± 1.0000

% Tan d: 0 to ± 999.99%

Tan d: 0 to ± 9.9999

mW/Var: 0 to ± 9999.9

Resolution: 0.01% / 0.0001

Guaranteed

Accuracy

± 1% of Reading, ± 0.04%

PF/Tan d (Entire Range)

Typical Accuracy: < ± 0.005% (Entire Range)

TEMPERATURE MEASUREMENT

Range: -20°C to +50°C

Resolution: 0.1°C

Accuracy: ±4°C
