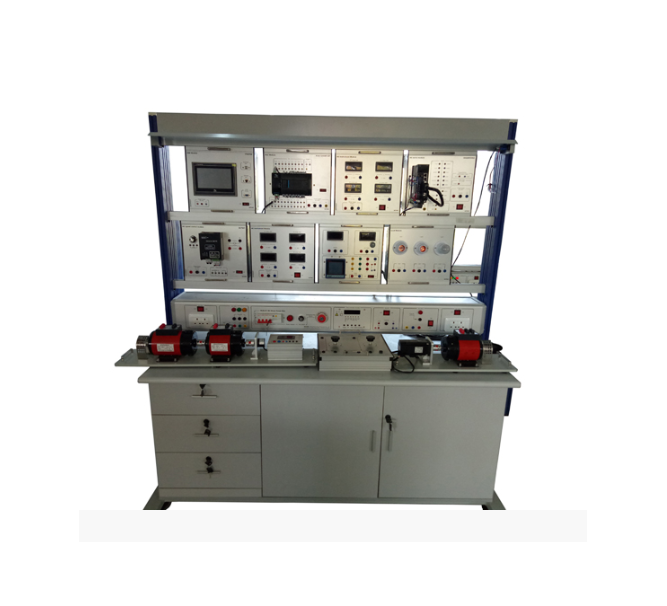

DOLANG DLWD-DJ01 DC Motor Training System

Technical parameter:

Input power: three-phase five-wire AC380V ± 10% 50Hz

Working environment: -10 ℃ - 45 ℃, relative humidity <90% RH (25 ℃), altitude <4000M

Device capacity: <1.5KVA

Output power: three-phase AC380V ± 10% 50Hz, single-phase AC220V ± 10% 50Hz DC24V (2 ways)

The general power control with leakage protection, when the leakage current up to 30mA, the protection device action.

Grid voltage instructions with 3 pcs 450V AC voltmeter pointers.

Training bench dimension: length × width × height: 1700 × 700 × 1750mm

DC Motor Training Experiment:

1 Software Installation

2 PLC programming software and programming practice experiment

3 PLC and CANLINK Servo Communication

4 Compound Excitation Motor Electricity-Generating Experiment

5 DC Motor Speed Regulating Experiment

6 DC Motor Electricity Generating Experiment of Motors 2

7 DC Motors 1 and Motors 2 Replace Motor Experiment

Datasheet

The DC motor training system is work process-oriented, motor control as the carrier, respectively, AC servo introduction, commonly used tools and instrumentation, the basic control circuit installation and maintenance of DC motor , The principle of DC motor power and other basic skills to learn situations to achieve a comprehensive understanding of motor control,to improve the practical ability of students
