Sine/Random Force (kN): 100/100
Shock Force @6ms (kN): 200
Frequency Range (Sine) (Hz): 5-2500
Frequency Range (Random) (Hz): 5-2500
Max. Acceleration (Sine) (g): 100
Max. Acceleration (Random) (g): 60
Max. Velocity (m/s): 2.5
Max. Displacement (mm): 76
Max. Load (kg): 1000
Resonance Point (Hz): 2200

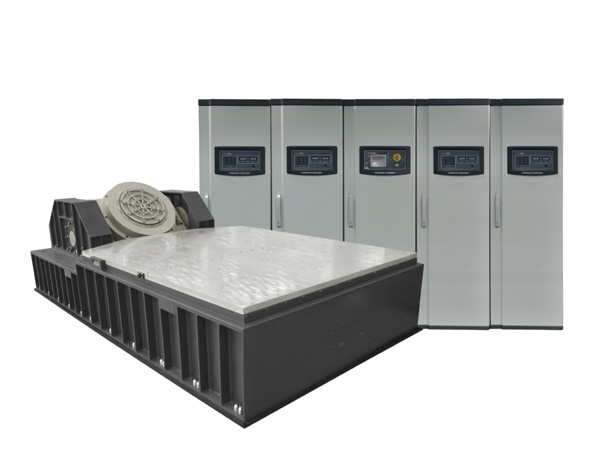

Shaker Model: ET-100LS3-550
Moving Part Mass (kg): 90
Armature Diameter (mm): 550
Mass (kg): 7300
Dimension (L*W*H) (mm): 1780*1280*1380
Isolation Airbag Resonance Frequency (Hz): 2.5
Power Amplifier Model: SDA-100
Output Power (kVA): 100
Power Consumption (kVA): 160
Mass (kg): 1900
Dimension (L*W*H) (mm): 1800*1010*2020
Cooling Unit Model: CU-2
Internal Circle Flow Rate (L/min): 80
Internal Circle Water Pressure (MPa): 1
External Circle Flow Rate (L/min): 200
External Circle Water Pressure (MPa): 0.25-0.4
Water Pump Power (I/E) (kW): 8.4
Mass (kg): 300
Dimension (L*W*H) (mm): 607*1010*2020
