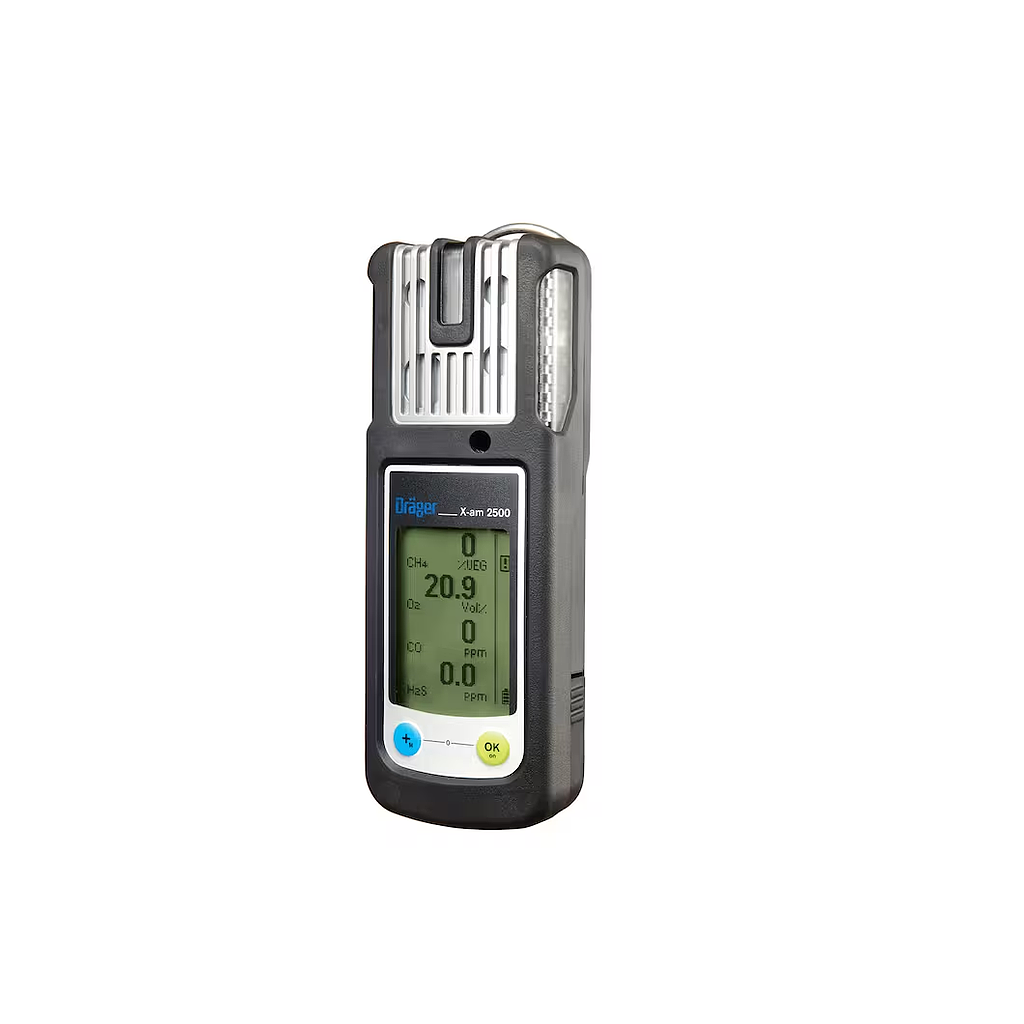

Drager X-am 2500 Portable MultiGas Detector

Dimensions: 48mm x 130mm x 44mm Width x Height x Depth

Weight: 220-250g

Ambient Conditions:

Temperature: -20 to +50ºC

Pressure: 700 to 1300 mbar

Relative Humidity: 10 to 95% r.h

Protection Class: IP67

Alarms:

Visual: 360º

Audible: Multi-tone > 90dB at 30cm

Vibration

Operating Times:

> 12 hours with alkaline and NiMH

> 13 hours with NiMH HC

> 250 hours without Ex sensor with alkaline batteries

Charging Time: < 4 hours

Datalogger: Retrievable using an infrared interface > 1000 hours with 4 gases at a recording interval of 1 value per minute

Sensor Specifications

Gas/ Range/ Resolution:

Combustible/ 0-100% LEL/ 1% LEL

Carbon Monoxide (CO)/ 0-2,000 ppm/ 2 ppm

Hydrogen Sulfide-LC (H2S)/ 0-100 ppm/ 0.1 ppm

Oxygen (O2)/ 0-25 Vol %/ 0.1% Vol

Nitrogen Dioxide (NO2)/ 0-50 ppm/ 0.1 ppm

Sulfur Dioxide (SO2)/ 0-100 ppm/ 0.1 ppm
